76829-0108 - Molex

76829-0108 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 76829-0108 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
• Is this connector suitable for outdoor or harsh environment applications?
  The 76829-0108 connector has a IP67 rating, which means it can withstand temporary immersion in water and is suitable for outdoor or harsh environment applications. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 76829-0108 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and to follow proper wire stripping and termination procedures.

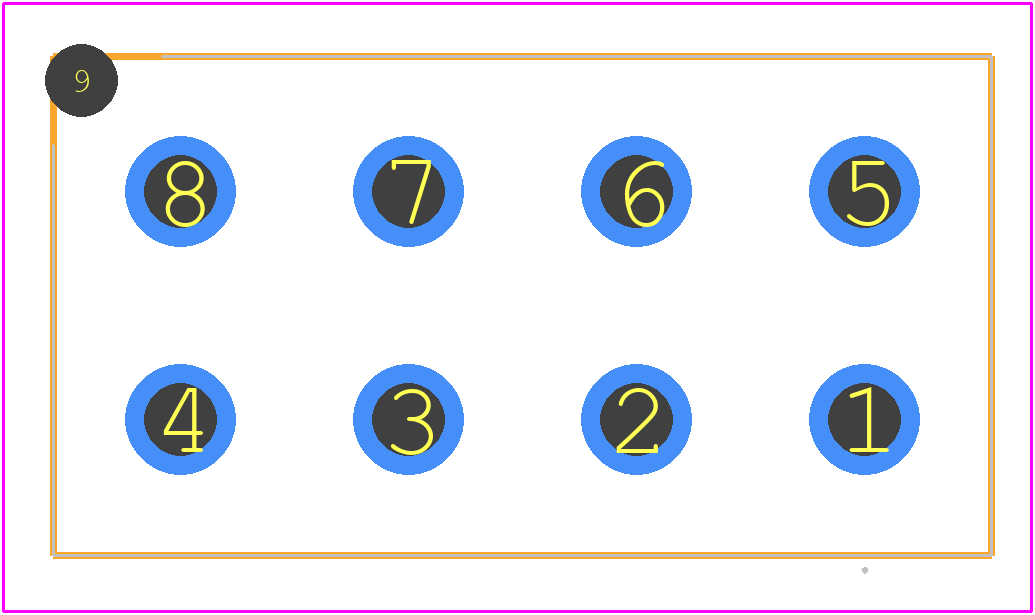

• Are there any specific PCB layout considerations for this connector?
  Yes, it's essential to follow proper PCB layout guidelines for the 76829-0108 connector, including maintaining a minimum clearance of 1.5 mm between the connector and other components, and ensuring the PCB material can withstand the connector's operating temperature range.
