172298-2314 - Molex

Description: Ultra-Fit Vertical Header, 3.50mm Pitch, Dual Row, 14 Circuits, with Kinked Pins, Glow-Wire Capable

Download 172298-2314 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
172298-2314 - Molex - PCB symbol
click to zoom
PCB Footprints

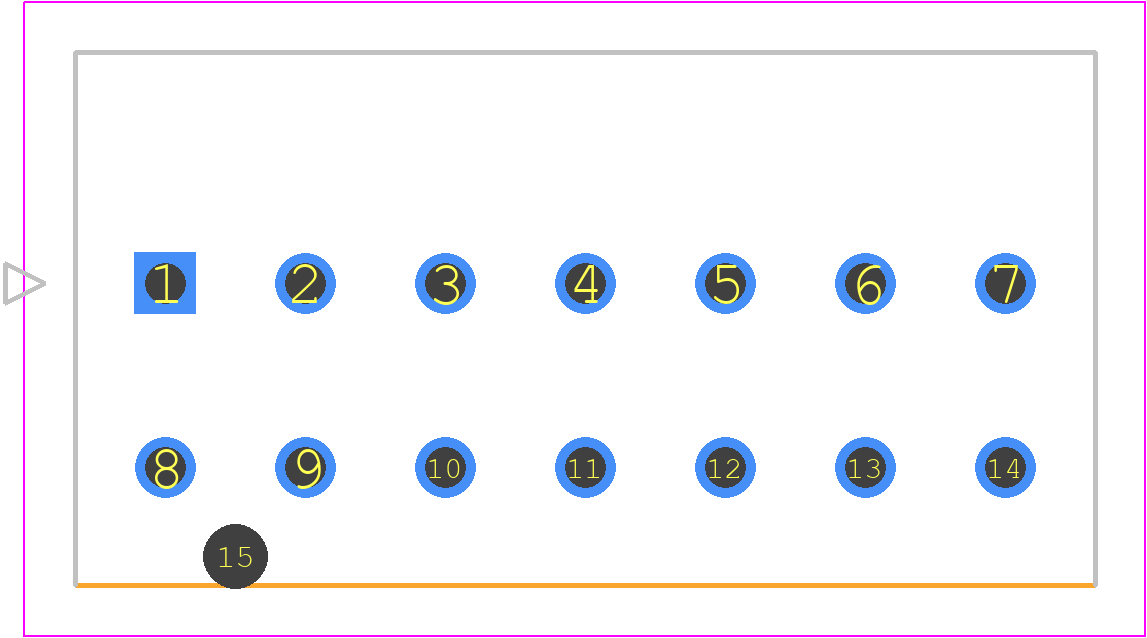

172298-2314 - Molex PCB footprint - Other - Other - 172298-YY14
click to zoom
3D Models
172298-2314 - Molex - 3D model - Other - 172298-YY14
click to zoom

172298-2314 Details

  • Manufacturer Part Number:

    172298-2314

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    31 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.75

  • Body Breadth:

    0.524 inch

  • Body Depth:

    0.551 inch

  • Body Length:

    1.004 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    11 A

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

172298-2314 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 172298-2314 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The operating temperature range for the 172298-2314 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 172298-2314 connector is designed to be compatible with automated assembly processes, including pick-and-place machines and wire termination equipment. However, it's essential to consult with Molex or a qualified assembly partner to ensure compatibility with specific assembly processes.
  • The recommended wire size for the 172298-2314 connector is 24-20 AWG (0.25-0.5 mm²). It's essential to use wires that meet this specification to ensure reliable connections and prevent damage to the connector.
