The recommended torque is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes or contact their technical support for specific guidance.
Yes, the 17230551102 connector is designed to meet the requirements of IEC 61948 and can withstand vibrations up to 10 g and shocks up to 100 g. However, it's crucial to ensure proper mounting and screwing to maintain the connector's integrity in such environments.
The 17230551102 connector has an IP67 rating, which means it can withstand temporary immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection of the connector and its mating components to maintain its integrity in humid or wet environments.
While the 17230551102 connector is designed to meet industry standards, it's recommended to use HARTING's mating components to ensure optimal performance and compatibility. Using components from other manufacturers may affect the connector's performance, reliability, or even void its warranty.
The 17230551102 connector is designed to operate within a temperature range of -40°C to +125°C. However, it's essential to consult the datasheet and application notes for specific temperature ratings and derating factors, especially in extreme temperature environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
17230551102 Overview

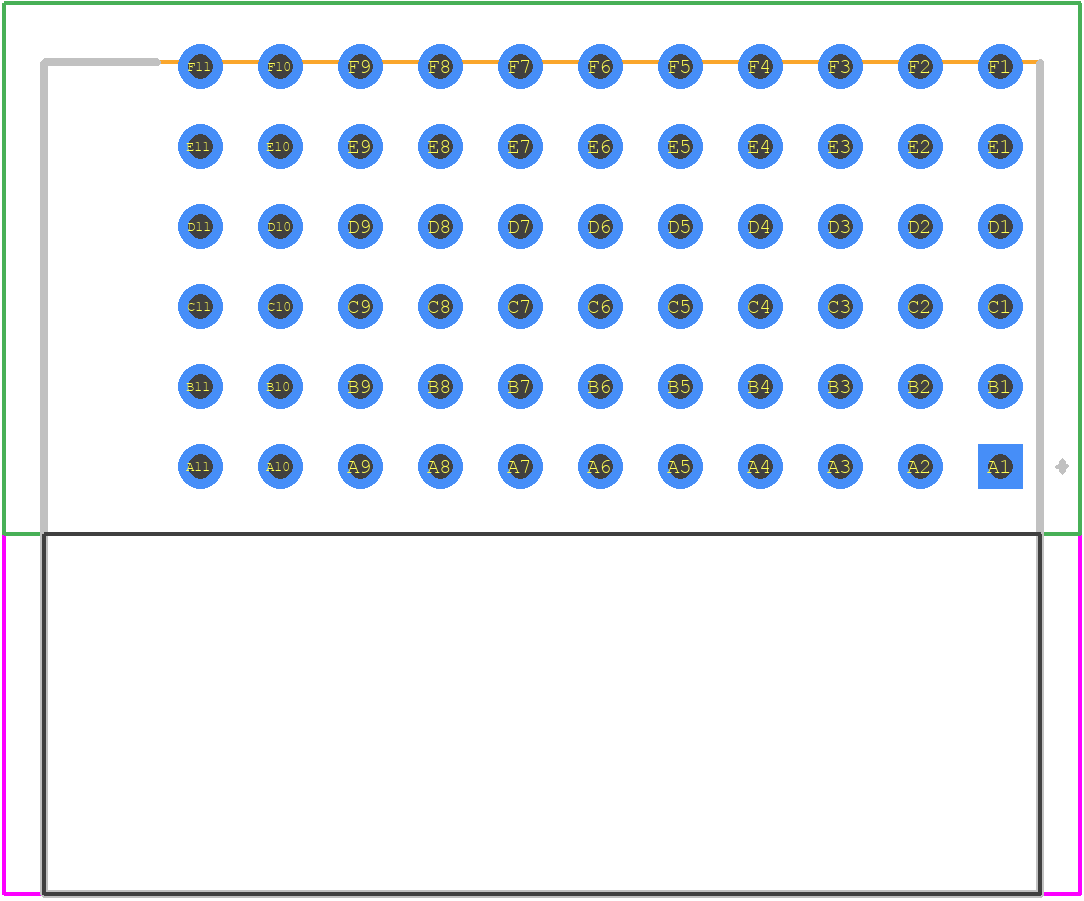

Use the download button to access the 17230551102 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17230,
or try a keyword search, such as Headers and Edge Type Connectors
