- Part Number 17241101101
- Manufacturer HARTING
- Pin Count 110
- Part Category Connector
- Package Category Other

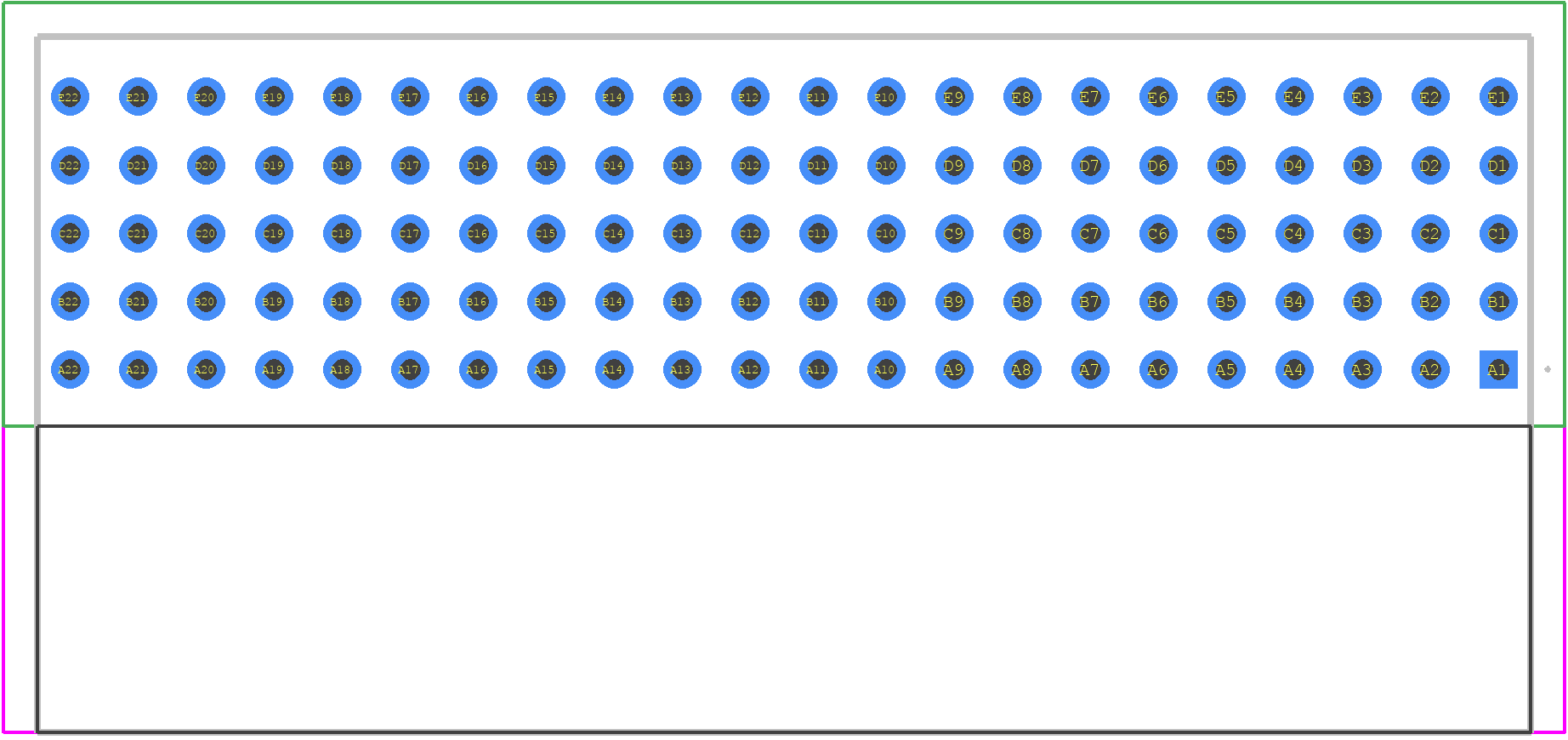

- Footprint Name Other - 17241101101-2
- Released Date Jul 4, 2021
- Last Modified Date May 24, 2023 9:08 AM UTC
- Pinout / Pin List Click Here (Member Only)
17241101101 Details
-
Manufacturer Part Number:
17241101101
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Germany
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
YTEOL:
8
-
Additional Feature:
PICMG, STANDARD: IEC 61076-4-101
-
Connector Type:
BOARD CONNECTOR
17241101101 Frequently Asked Questions (FAQs)
-
The recommended torque for screwing the 17241101101 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
-
Yes, the 17241101101 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
-
Yes, the 17241101101 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, transportation, and other demanding environments.
-
The maximum operating temperature range for the 17241101101 connector is -40°C to +125°C, making it suitable for use in a wide range of applications.
-
Yes, the 17241101101 connector is designed to be compatible with other HARTING products, including cables, adapters, and other connectors, making it easy to integrate into existing systems.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
17241101101 Overview
Use the download button to access the 17241101101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17241,
or try a keyword search, such as Headers and Edge Type Connectors
