The recommended torque value is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 17241102102 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g.
Yes, the connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity levels up to 95% RH.
The connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.
The 17241102102 connector is compatible with other HARTING connectors that share the same interface and mating dimensions, but it's recommended to verify compatibility with specific models before use.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
17241102102 Overview

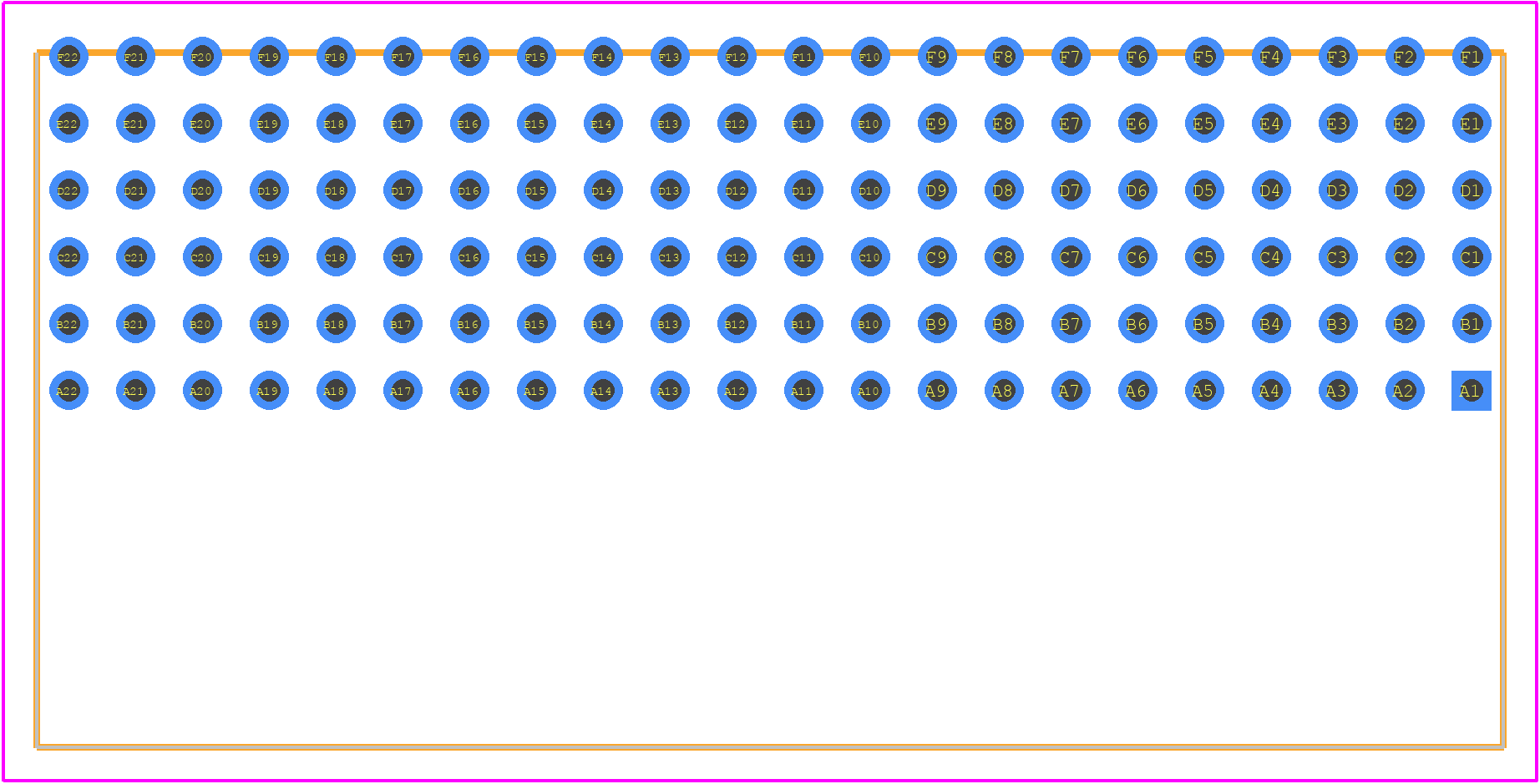

Use the download button to access the 17241102102 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17241,
or try a keyword search, such as Headers and Edge Type Connectors
