17262201102 - HARTING

Description: HM Female Type Monoblock 47, w/ upper shield, PL1

Download 17262201102 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17262201102 - HARTING - PCB symbol
click to zoom

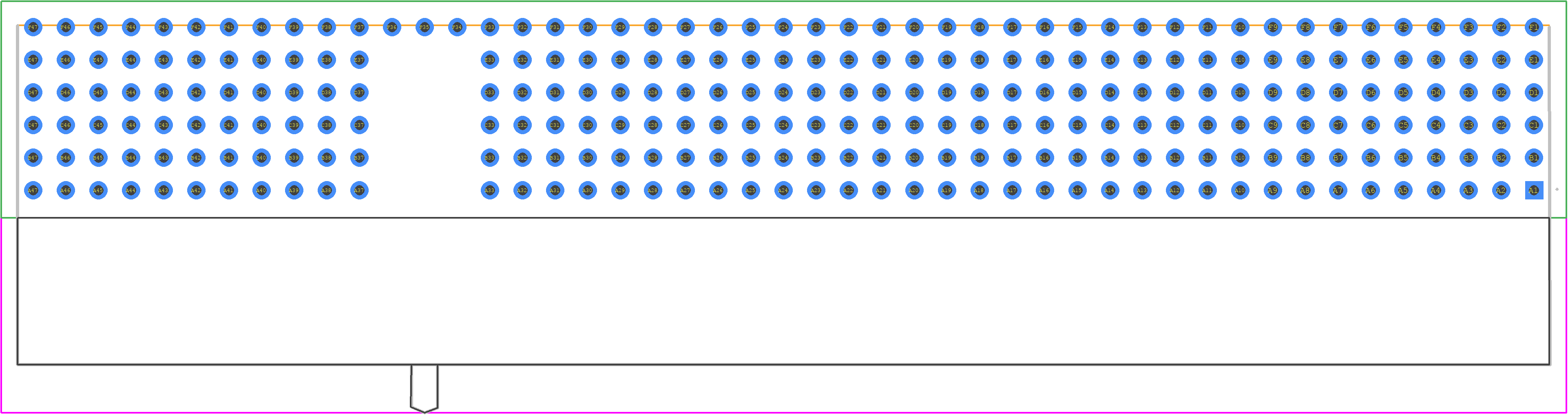

PCB Footprints
17262201102 - HARTING PCB footprint - Other - Other - 17262201102
click to zoom
3D Models
17262201102 - HARTING - 3D model - Other - 17262201102
click to zoom

17262201102 Details

  • Manufacturer Part Number:

    17262201102

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    SHIELDED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    6

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    220

  • UL Flammability Code:

    94V-0

17262201102 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 17262201102 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 17262201102 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 17262201102 connector is designed for use in harsh environments, with an operating temperature range of -40°C to +125°C and humidity resistance up to 95% RH (according to IEC 60068-2-78).
  • The 17262201102 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 17262201102 connector is designed to be compatible with other HARTING connectors and some third-party connectors, but compatibility should be verified before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17262201102 Overview

Use the download button to access the 17262201102 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17262, or try a keyword search, such as Headers and Edge Type Connectors
