Technical Content
Part Image

17262202101 - HARTING

Description: HM Female Type Monoblock 47, unshielded, PL2

Download 17262202101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17262202101 - HARTING - PCB symbol
click to zoom

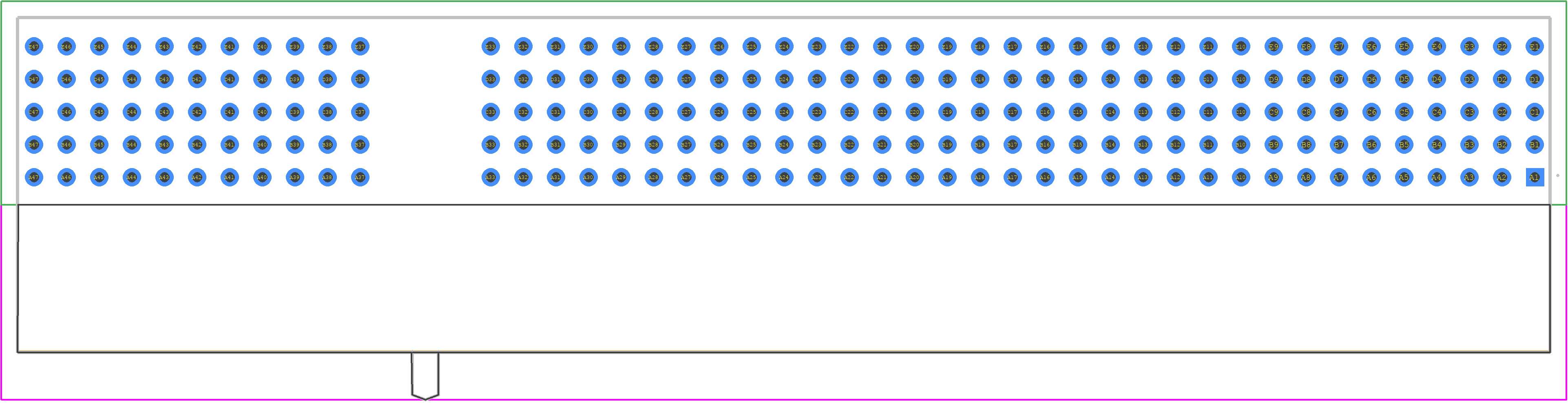

PCB Footprints
17262202101 - HARTING PCB footprint - Other - Other - 17262202101
click to zoom
3D Models
17262202101 - HARTING - 3D model - Other - 17262202101
click to zoom

17262202101 Details

  • Manufacturer Part Number:

    17262202101

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    SHIELDED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    5

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    220

  • UL Flammability Code:

    94V-0

17262202101 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 17262202101 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 17262202101 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 1, Class B.
  • Yes, the 17262202101 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The 17262202101 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the 17262202101 connector is compatible with other HARTING connectors that have the same interface and mating dimensions, allowing for flexibility in design and assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17262202101 Overview

Use the download button to access the 17262202101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17262, or try a keyword search, such as Headers and Edge Type Connectors
