The recommended torque for the screw terminals is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the manufacturer's guidelines or contact their technical support for specific torque recommendations.
The 1728690000 is designed for general industrial use, but it may not be suitable for hazardous locations without additional certifications or modifications. Engineers should consult the manufacturer's documentation and relevant industry standards (e.g., ATEX, IECEx, or UL) to determine if the product meets the necessary requirements for their specific application.
Proper grounding and shielding are crucial to ensure the reliable operation of the 1728690000. Engineers should follow the manufacturer's guidelines for grounding and shielding, which typically involve connecting the product's grounding points to a suitable earth ground and using shielded cables to minimize electromagnetic interference (EMI).
While the datasheet may provide a general operating temperature range, engineers may need to know the maximum operating temperature range for their specific application. The 1728690000 is typically designed to operate within a temperature range of -20°C to 70°C, but this may vary depending on the specific model and configuration. Engineers should consult the manufacturer's documentation or contact their technical support for more information.
Yes, Weidmüller Interface GmbH & Co. KG may offer customization options for labeling or markings on the 1728690000. Engineers should contact the manufacturer's sales or technical support team to discuss their specific requirements and determine the feasibility of customization.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1728690000 Overview

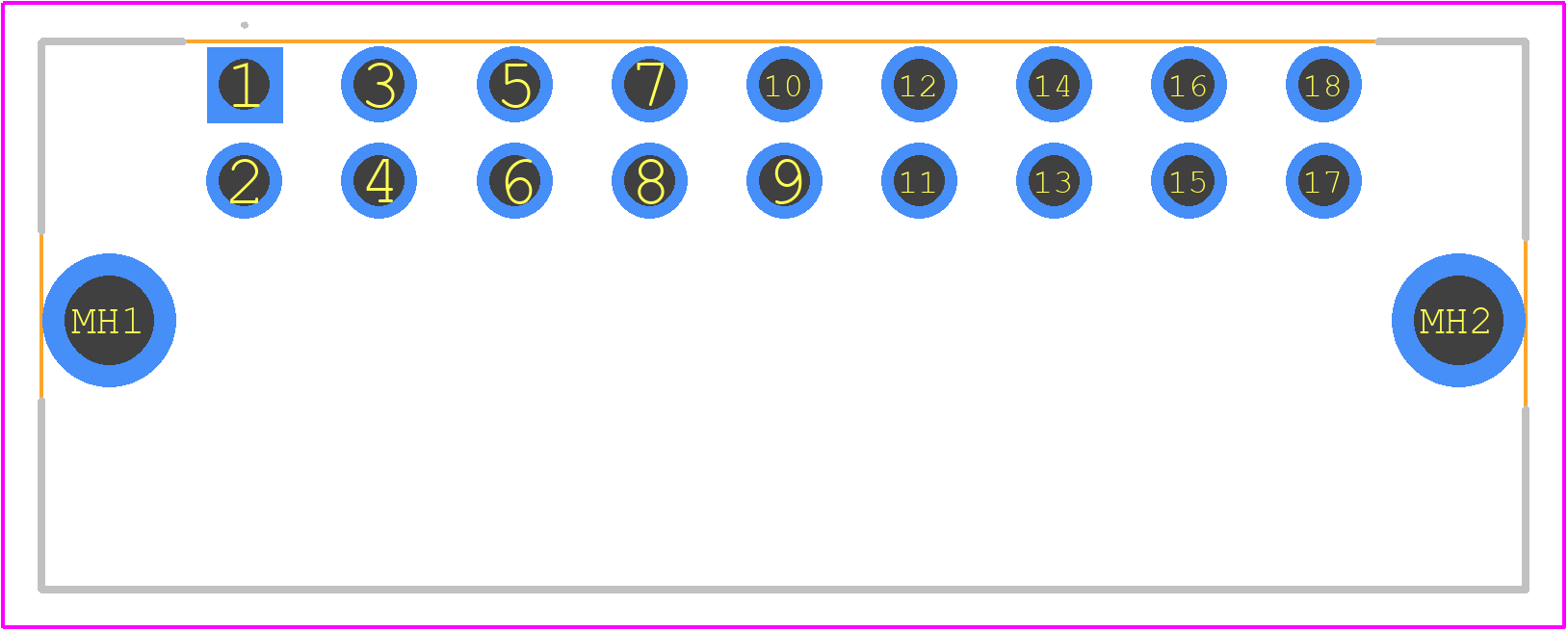

Use the download button to access the 1728690000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17286,
or try a keyword search, such as Terminals and Terminal Blocks
