The recommended torque for screw terminals is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the manufacturer's guidelines or contact their support team for specific torque recommendations.
The 1729430000 is designed for general industrial use, but it may not be suitable for hazardous locations without additional certifications or modifications. Engineers should consult the manufacturer's documentation and relevant industry standards (e.g., ATEX, IECEx, or UL) to determine if the product meets the necessary requirements for their specific application.
To ensure proper grounding and shielding, engineers should follow the manufacturer's guidelines for grounding and shielding connections. This may involve connecting the product's grounding points to a suitable earth ground, using shielded cables, and ensuring that the product is installed in a way that minimizes electromagnetic interference (EMI).
The operating temperature range for the 1729430000 is typically between -20°C to 70°C, but this may vary depending on the specific application and environmental conditions. Engineers should consult the manufacturer's documentation or contact their support team for specific temperature range recommendations.
The 1729430000 is designed to withstand normal industrial vibrations, but it may not be suitable for extremely high-vibration environments without additional testing or modifications. Engineers should consult the manufacturer's documentation or contact their support team to determine if the product meets the necessary requirements for their specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1729430000 Overview

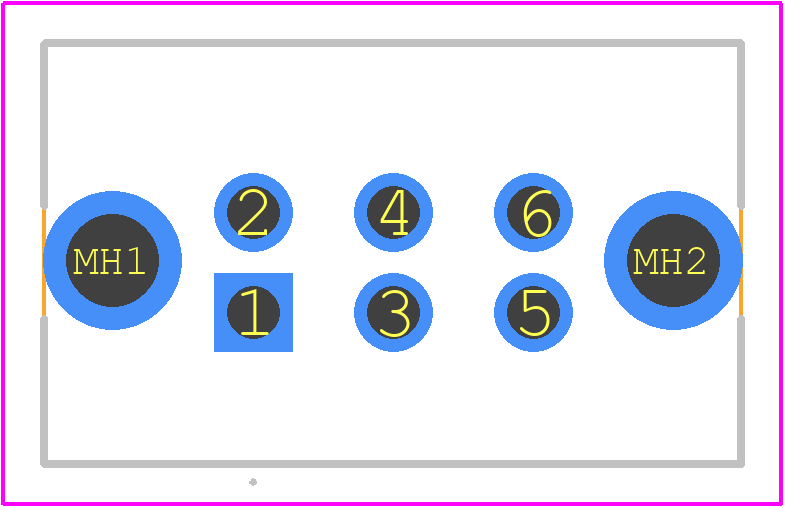

Use the download button to access the 1729430000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17294,
or try a keyword search, such as Terminals and Terminal Blocks
