173-E09-113R001 - NorComp

Description: D-Sub Standard Connectors 9POS Male 5A Steel

Download 173-E09-113R001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
173-E09-113R001 - NorComp - PCB symbol
click to zoom
PCB Footprints

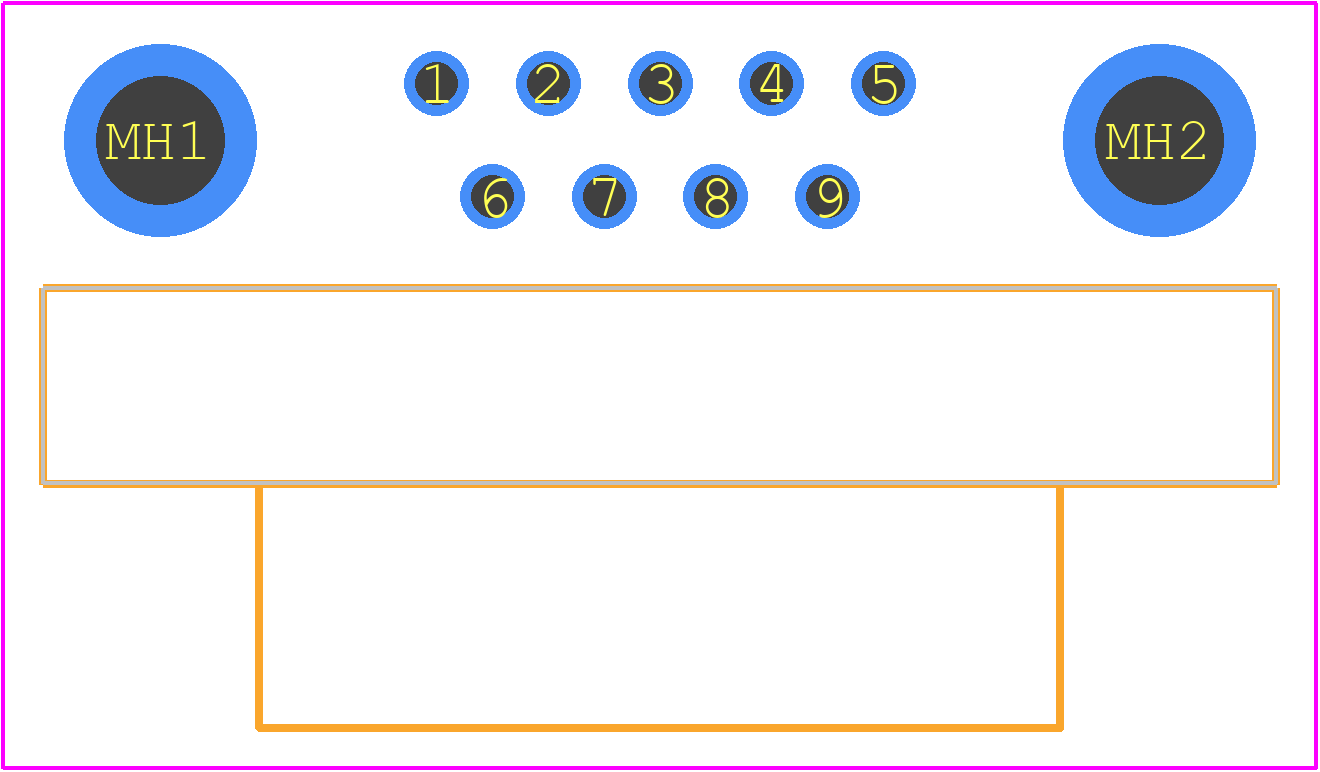

173-E09-113R001 - NorComp PCB footprint - Other - Other - 173-E09-113R001-2
click to zoom

173-E09-113R001 Details

  • Manufacturer Part Number:

    173-E09-113R001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.5

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE6T

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

173-E09-113R001 Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads to ensure proper mating and prevent damage.
  • Yes, the 173-E09-113R001 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
  • The 173-E09-113R001 has a IP67 rating, making it suitable for outdoor use and capable of withstanding exposure to dust and water. However, it's essential to follow proper sealing and installation procedures to maintain the rating.
  • The 173-E09-113R001 is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). Exceeding this range may affect the connector's performance and reliability.
  • The 173-E09-113R001 is designed for use with specific cable types and sizes. Using a different cable type or size may affect the connector's performance and reliability. Consult the manufacturer's guidelines or contact their support team for guidance on compatible cable options.
