The recommended torque value for the screw terminals is 0.5-1.0 Nm (4-8 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
Yes, the 173-E25-213R001 is designed to withstand vibrations up to 10G (10-2000 Hz) according to IEC 61373. However, it's recommended to consult with NorComp's application engineers to ensure the connector meets the specific requirements of your application.
The operating temperature range for the 173-E25-213R001 is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
The 173-E25-213R001 has a nickel-plated brass shell and gold-plated contacts, which provide some level of protection against corrosion. However, it's recommended to apply additional protection, such as conformal coating or potting, to ensure the connector's reliability in harsh environments.
The 173-E25-213R001 is designed for use with cables of specific sizes and types. It's recommended to consult with NorComp's application engineers or refer to the connector's documentation to ensure compatibility with your specific cable requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
173-E25-213R001 Overview

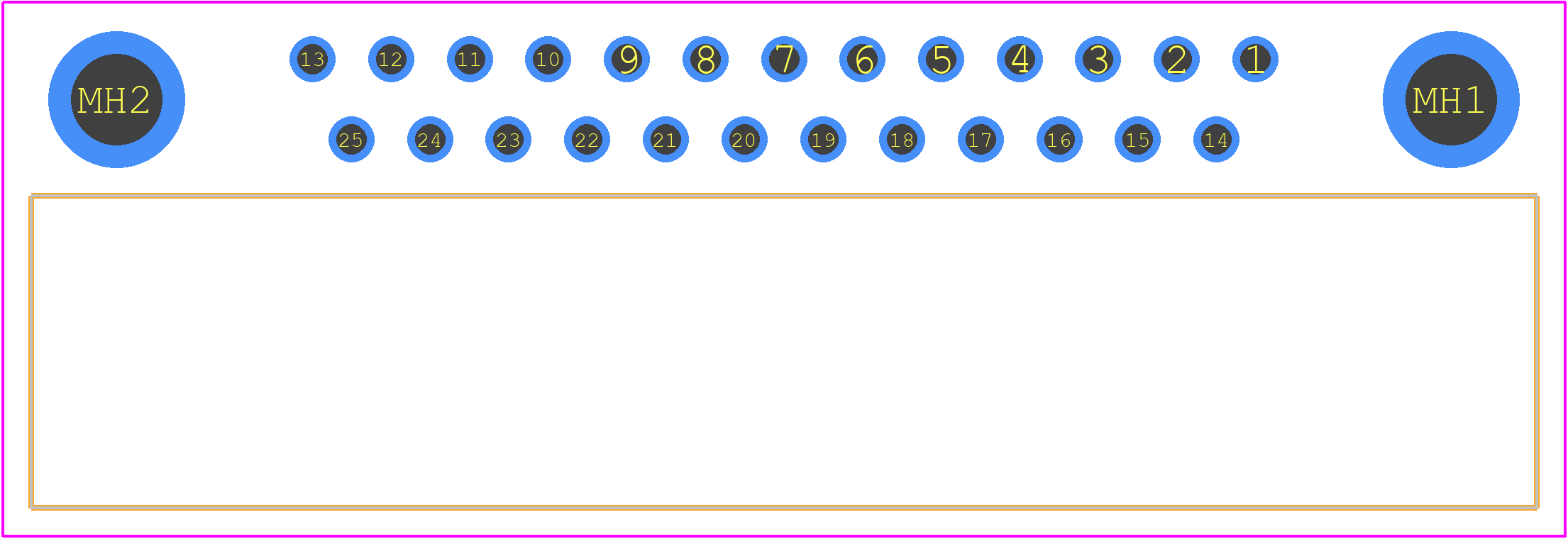

Use the download button to access the 173-E25-213R001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 173-E,
or try a keyword search, such as D Type Connectors
