173-E37-113R141 footprint, schematic symbol and 3D model by NorComp

Symbol

click to zoom

PCB Footprints

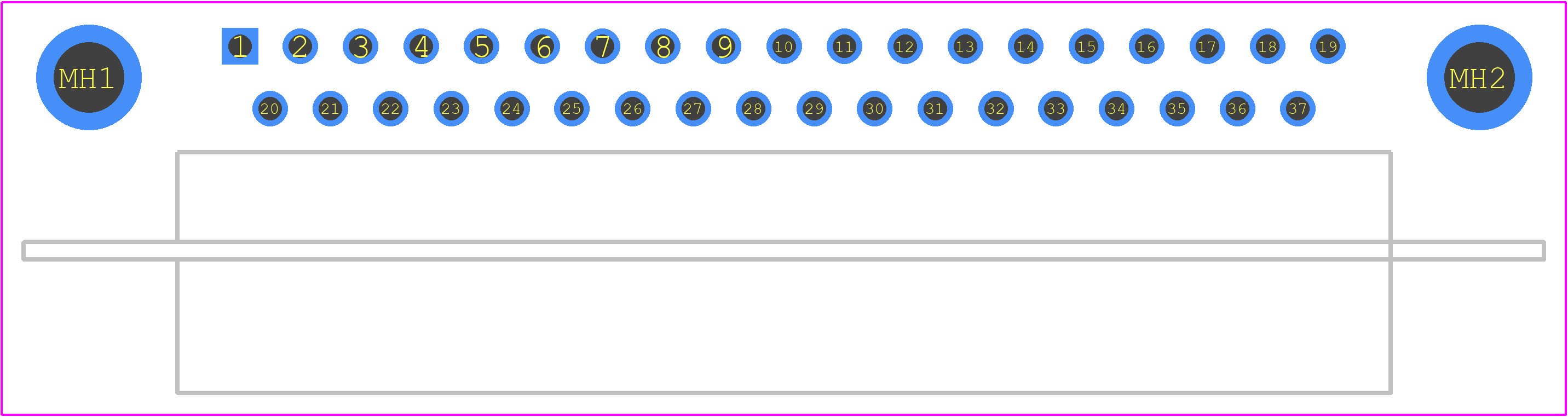

173-E37-113R141 - NorComp PCB footprint - Other - Other - 173-E37-113R141-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 173-E37-113R141
Part Number 173-E37-113R141
Manufacturer NorComp
Pin Count 39
Part Category Connector
Package Category Other
Footprint Name Other - 173-E37-113R141-1
Released Date Oct 30, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

173-E37-113R141 Details

Manufacturer Part Number:
173-E37-113R141
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
YTEOL:
8.5
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYAMIDE6T
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
NICKEL
Shell Material:
STEEL
Shell Size:
4/C
Termination Type:
SOLDER
Total Number of Contacts:
37
UL Flammability Code:
94V-0

173-E37-113R141 Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads.
Yes, the 173-E37-113R141 is designed to withstand high-vibration environments and is suitable for applications with intense shock and vibration.
Yes, the connector is designed to operate in harsh environments, including temperatures ranging from -55°C to 125°C and humidity up to 95% RH.
The mating cycle life of the 173-E37-113R141 is rated for a minimum of 500 mating cycles.
The 173-E37-113R141 is designed to be compatible with other connectors that meet the MIL-DTL-38999 standard, but compatibility with connectors from other manufacturers should be verified on a case-by-case basis.

Trust Checks

Community Provided

System Verified

Community Approved

173-E37-113R141 Overview

Use the download button to access the 173-E37-113R141 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 173-E, or try a keyword search, such as D Type Connectors
