173-E37-113R461 - NorComp

Description: D-Sub Standard Connectors 37 M R/A .283 HW

Download 173-E37-113R461 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
173-E37-113R461 - NorComp - PCB symbol
click to zoom
PCB Footprints

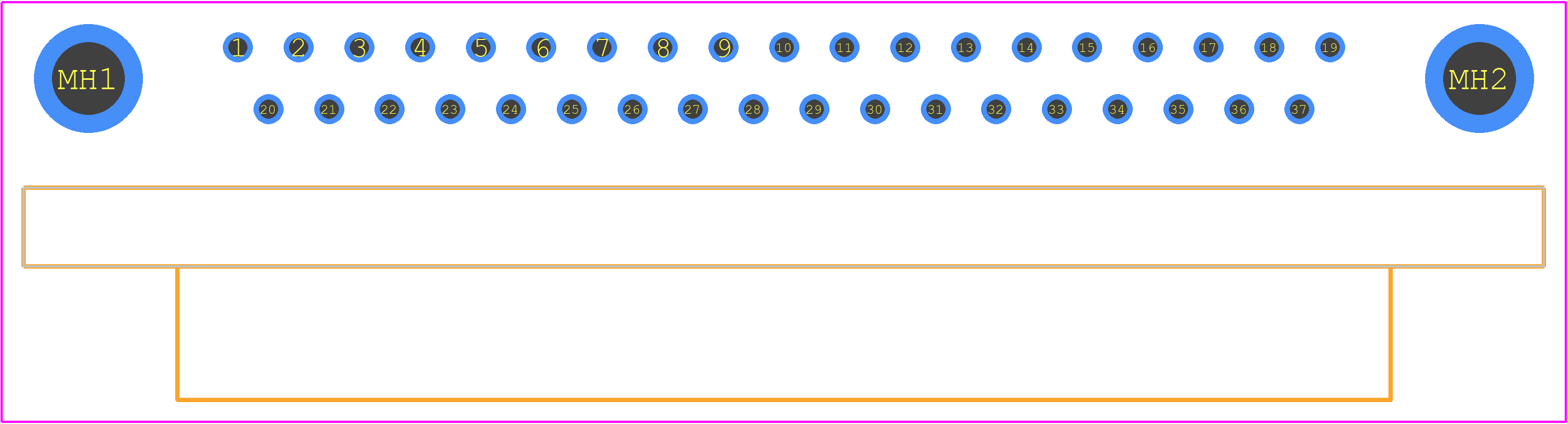

173-E37-113R461 - NorComp PCB footprint - Other - Other - 173-E37-113R461-1
click to zoom

173-E37-113R461 Details

  • Manufacturer Part Number:

    173-E37-113R461

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.5

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE6T

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

173-E37-113R461 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 173-E37-113R461 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
  • Yes, the connector is rated IP67 (IEC 60529) and can withstand exposure to water and dust, making it suitable for outdoor use.
  • The operating temperature range for the 173-E37-113R461 is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • While the datasheet specifies AWG 24-18 wire sizes, the connector can accommodate other wire sizes with the use of adapters or by consulting with NorComp's technical support team.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

173-E37-113R461 Overview

Use the download button to access the 173-E37-113R461 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 173-E, or try a keyword search, such as D Type Connectors
