173-E50-113R461 footprint, schematic symbol and 3D model by NorComp

Symbol

click to zoom

PCB Footprints

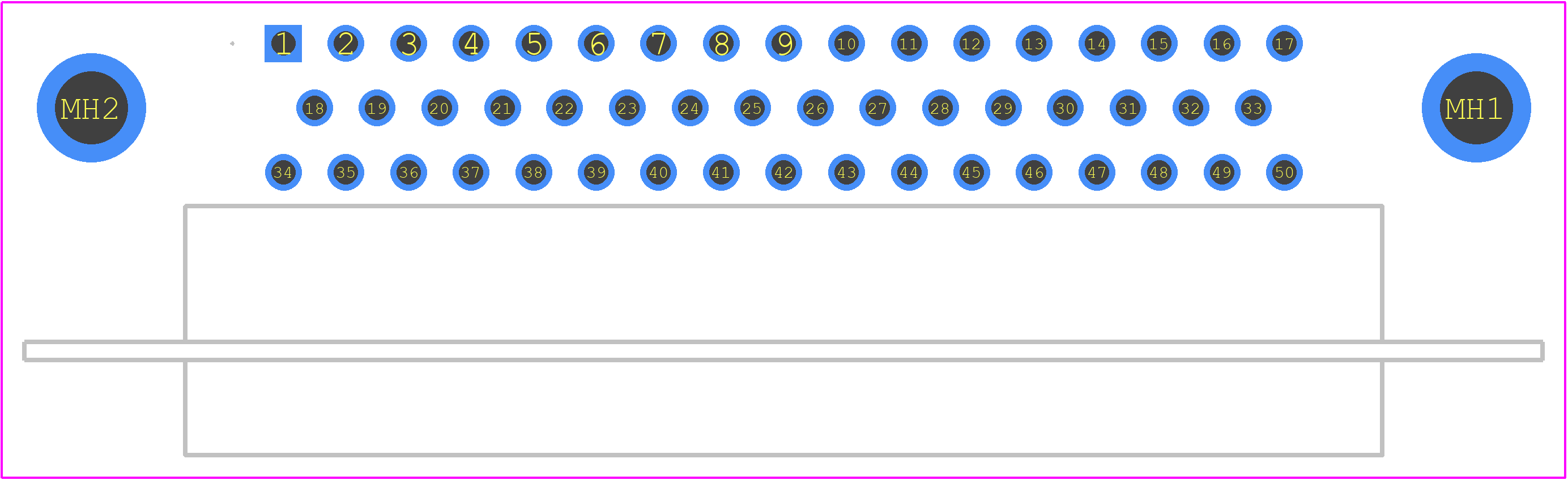

173-E50-113R461 - NorComp PCB footprint - Other - Other - 173-E50-113R461-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 173-E50-113R461
Part Number 173-E50-113R461
Manufacturer NorComp
Pin Count 52
Part Category Connector
Package Category Other
Footprint Name Other - 173-E50-113R461-1
Released Date Mar 7, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

173-E50-113R461 Details

Manufacturer Part Number:
173-E50-113R461
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
YTEOL:
9
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYAMIDE6T
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
NICKEL
Shell Material:
STEEL
Shell Size:
5/D
Termination Type:
SOLDER
Total Number of Contacts:
50
UL Flammability Code:
94V-0

173-E50-113R461 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 173-E50-113R461 is designed to withstand high-vibration environments. The connector's rugged construction and secure screw terminals ensure reliable connections even in demanding applications.
The 173-E50-113R461 has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its IP67 rating.
The 173-E50-113R461 has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial automation to automotive systems.
While the datasheet specifies AWG 18-24 wire sizes, the connector can accommodate other wire sizes with proper termination and strain relief. However, it's essential to consult with NorComp or a qualified engineer to ensure reliable connections and prevent damage to the connector.

Trust Checks

Community Provided

System Verified

Community Approved

173-E50-113R461 Overview

Use the download button to access the 173-E50-113R461 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 173-E, or try a keyword search, such as D Type Connectors
