1731617 - Phoenix Contact

Description: MCV 1,5/15-G-3,5-RN - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 15, number of rows: 1, number of positions: 15, number of connections: 15, product range: MCV 1,5/..-G-RN, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON FMC 1,5 - MCDN 1,5, Pin connec

Download 1731617 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1731617 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

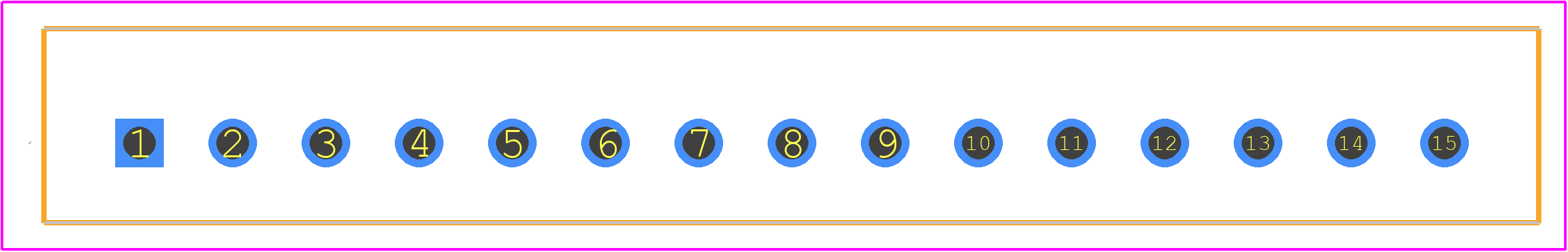

1731617 - Phoenix Contact PCB footprint - Other - Other - 1731617
click to zoom
3D Models
1731617 - Phoenix Contact - 3D model - Other - 1731617
click to zoom

1731617 Details

  • Manufacturer Part Number:

    1731617

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    15

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1731617 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6.
  • Yes, the connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH, making it suitable for harsh environments.
  • The maximum current rating is 12 A per contact, depending on the wire size and application.
  • Yes, the connector is designed for automated assembly and can be processed using standard pick-and-place machines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1731617 Overview

Use the download button to access the 1731617 schematic symbol, PCB footprint, and 3D model.
