Part Image

173279-3 - TE Connectivity

Description: 50 Position D-Type, Board to Board Plug, Female Sockets Connector

Download 173279-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
173279-3 - TE Connectivity - PCB symbol
click to zoom

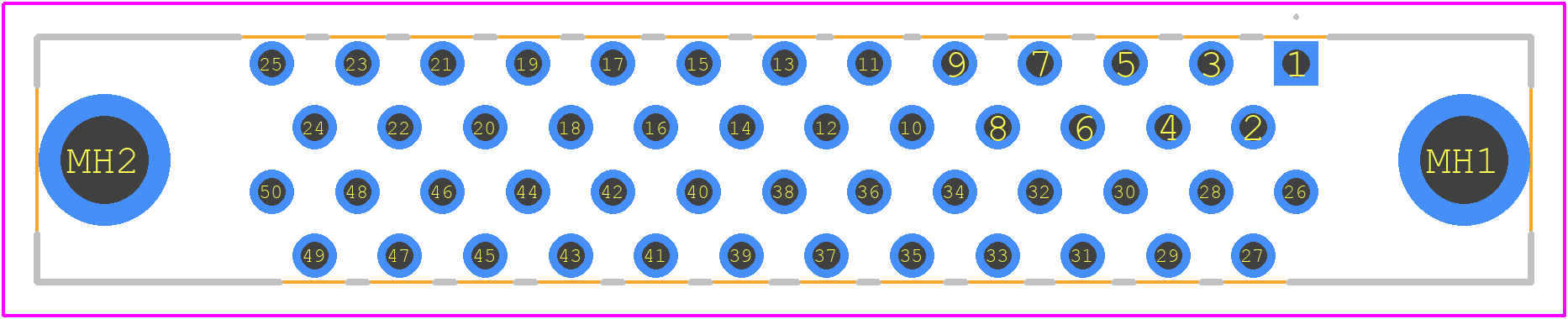

PCB Footprints
173279-3 - TE Connectivity PCB footprint - Other - Other - 173279-3-1
click to zoom
3D Models
173279-3 - TE Connectivity - 3D model - Other - 173279-3-1
click to zoom

173279-3 Details

  • Manufacturer Part Number:

    173279-3

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    0.287 inch

  • Body Depth:

    0.106 inch

  • Body Length:

    1.75 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    100VDC V

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.905 mm

  • Plating Thickness:

    8u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL, CSA

  • Shell Size:

    5/D

  • Terminal Length:

    0.122 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

173279-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's guidelines for the specific connector series.
  • Yes, the 173279-3 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and securement to prevent connector damage or disconnection.
  • The 173279-3 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for prolonged exposure to direct sunlight, extreme temperatures, or corrosive substances. For outdoor or harsh environmental use, consider using a connector with additional protection features or consult with TE Connectivity for a customized solution.
  • The 173279-3 connector is designed for use with 24-20 AWG wire. While it may be possible to use it with a different wire gauge or type, it's essential to ensure compatibility and consult TE Connectivity's guidelines to avoid any potential issues or damage to the connector or wire.
  • The 173279-3 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application requirements and potential thermal stresses to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

173279-3 Overview

Use the download button to access the 173279-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17327, or try a keyword search, such as D Type Connectors
