1734101-7 - TE Connectivity

Description: I/O Connectors

Download 1734101-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1734101-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

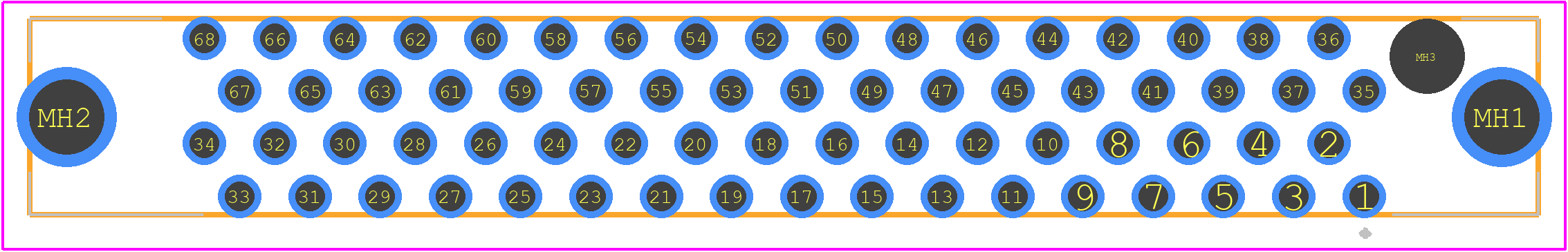

1734101-7 - TE Connectivity PCB footprint - Other - Other - 1734101-7-2
click to zoom
3D Models
1734101-7 - TE Connectivity - 3D model - Other - 1734101-7-2
click to zoom

1734101-7 Details

  • Manufacturer Part Number:

    1734101-7

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    5 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.5

  • Additional Feature:

    CHAMP

  • Board Mounting Option:

    LOCATING POST

  • Body Depth:

    0.393 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    750VAC V

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    4000000 Ω

  • Insulator Material:

    POLYPHTALAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Row Spacing:

    0.075 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    68

  • UL Flammability Code:

    94V-0

1734101-7 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1734101-7 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of appropriate wire adapters or terminals. However, it's crucial to verify the wire size and terminal compatibility before making a connection.
  • The 1734101-7 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 1734101-7 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you plan to use the connector in an environment with high humidity or exposure to chemicals, consider using additional protection measures, such as conformal coatings or sealing compounds, to ensure the connector's reliability.
