17341101101 - HARTING

Description: HM Female Type AB22, unshielded, PL1

Download 17341101101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17341101101 - HARTING - PCB symbol
click to zoom
PCB Footprints

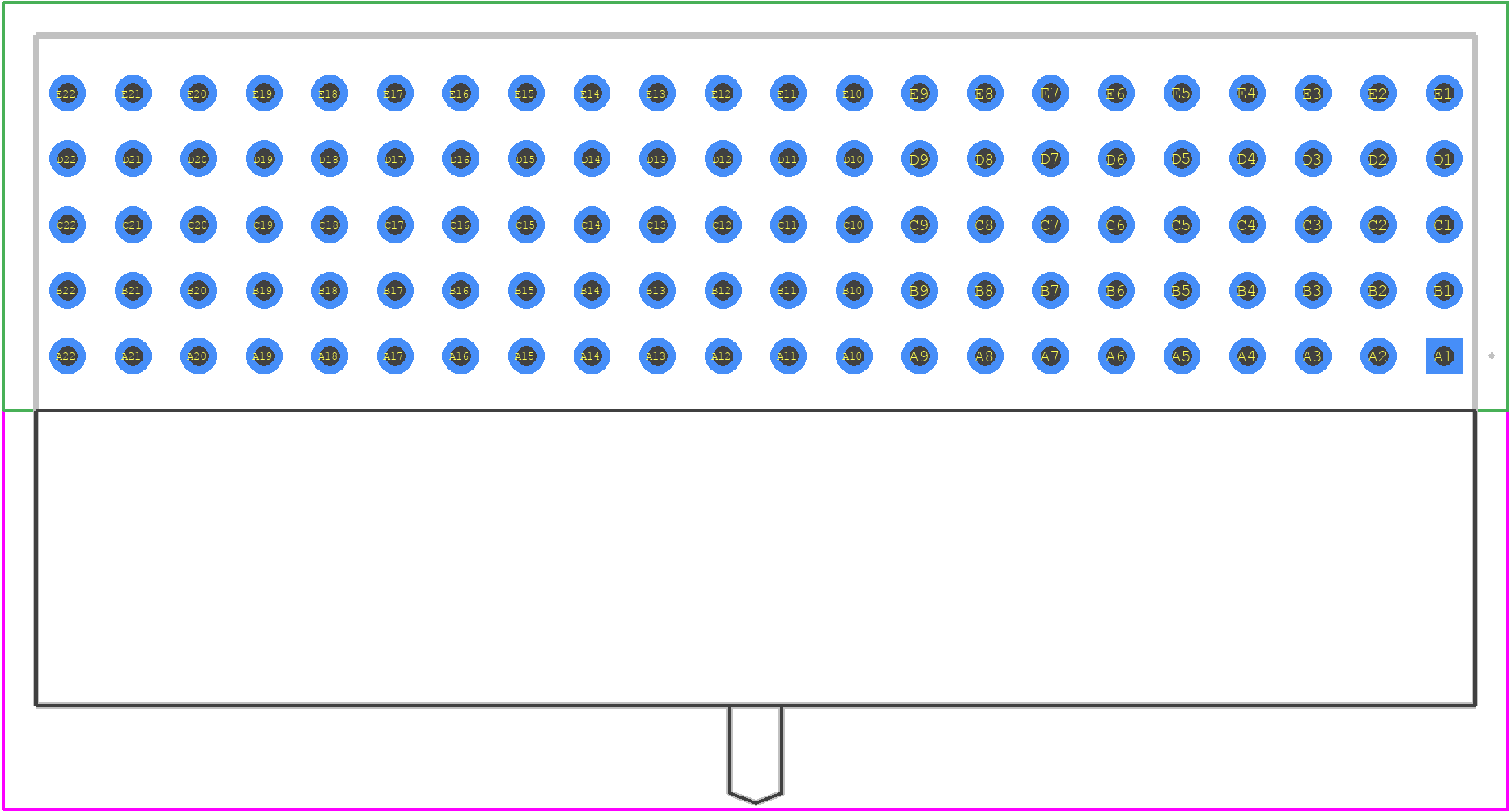

17341101101 - HARTING PCB footprint - Other - Other - 17341101101
click to zoom
3D Models
17341101101 - HARTING - 3D model - Other - 17341101101
click to zoom

17341101101 Details

  • Manufacturer Part Number:

    17341101101

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    22 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE

  • Body Breadth:

    0.543 inch

  • Body Depth:

    0.921 inch

  • Body Length:

    1.728 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    5

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2 mm

  • Terminal Length:

    0.805 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    110

  • UL Flammability Code:

    94V-0

17341101101 Frequently Asked Questions (FAQs)

  • The recommended torque is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes or contact their technical support for specific guidance.
  • Yes, the 17341101101 connector is designed to withstand vibrations and shocks according to IEC 61373 Cat 2. However, it's crucial to ensure proper mounting and screwing to prevent damage or disconnection.
  • The 17341101101 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to consider additional protection measures, such as conformal coating or potting, to ensure long-term reliability.
  • It's not recommended to mix and match connectors from different manufacturers, as compatibility and reliability cannot be guaranteed. HARTING connectors are designed to mate with other HARTING connectors, ensuring optimal performance and reliability.
  • The 17341101101 connector is rated for operation between -40°C to +125°C. However, it's essential to consider the specific application and potential thermal stresses to ensure reliable operation.
