1735284-1 - TE Connectivity

Description: SATA, Receptacle, Cable-to-Board, 22 Position, 7P + 15P, Standard Profile, Vertical, Surface Mount, 1 Row, 2 Port, Top, 1.27 mm [.05 in] Centerline

Download 1735284-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

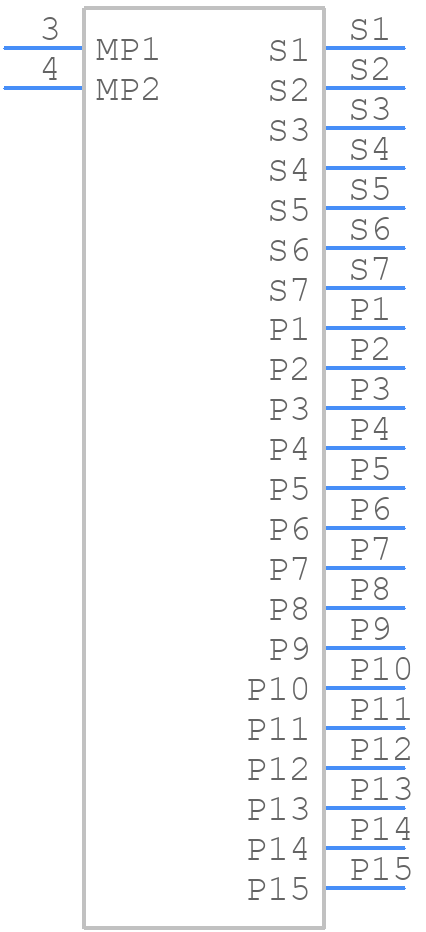

Symbol
1735284-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1735284-1 - TE Connectivity PCB footprint - Other - Other - 1735284-1-1
click to zoom
3D Models
1735284-1 - TE Connectivity - 3D model - Other - 1735284-1-1
click to zoom

1735284-1 Details

  • Manufacturer Part Number:

    1735284-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.29

  • Board Mounting Option:

    BOARD LOCK

  • Body Depth:

    0.26 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    SCSI CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    2

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    22

  • UL Flammability Code:

    94V-0

1735284-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 1735284-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1735284-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1735284-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and follow TE Connectivity's guidelines for use in humid or wet environments.
  • The 1735284-1 connector has a mating cycle life of at least 500 cycles. However, this may vary depending on the application, usage, and environmental conditions. Consult TE Connectivity's technical support for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1735284-1 Overview

Use the download button to access the 1735284-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17352, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
