173858-6 - TE Connectivity

Description: Body Features: Primary Product Color Gray | Configuration Features: Number of Signal Positions 12 | PCB Mount Orientation Horizontal | Number of Rows 2 | Number of Positions 12 | Number of Sections 1 | Contact Features: Mating Tab Thickness .025 INCH | Mating Tab Width 1.8 MM | Contact Type Tab | Contact Mating Area Plating Material Tin | Contact Size 1.8mm | Mating Tab Thickness .64 MM | Mating Tab Width .071 INCH | Dimensions: PCB Thickness (Recommended) .063 INCH | Connector Width 46.3 MM | Connector Wid

Download 173858-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
173858-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

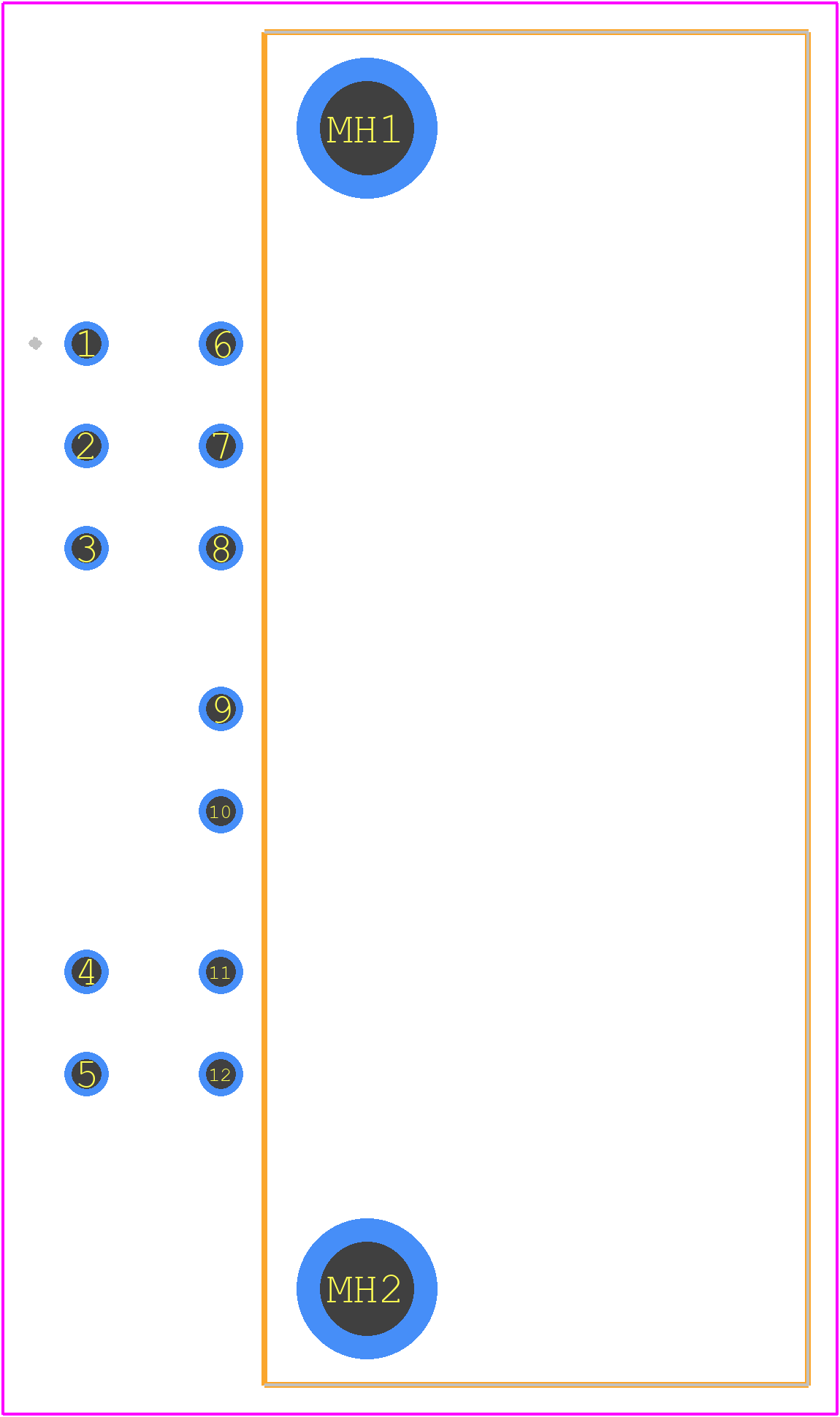

173858-6 - TE Connectivity PCB footprint - Other - Other - 173858-6-3
click to zoom
3D Models
173858-6 - TE Connectivity - 3D model - Other - 173858-6-3
click to zoom

173858-6 Details

  • Manufacturer Part Number:

    173858-6

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body Breadth:

    1.823 inch

  • Body Length:

    0.981 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94-HB

173858-6 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
  • Yes, the 173858-6 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure fastening to prevent connector damage or disconnection.
  • The 173858-6 connector has a IP67 rating, making it suitable for outdoor and harsh environmental conditions. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • Yes, the 173858-6 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and connectors. However, it's essential to verify compatibility and follow proper mating and unmating procedures to ensure reliable connections.
  • The operating temperature range for the 173858-6 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application requirements and potential temperature extremes to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

173858-6 Overview

Use the download button to access the 173858-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17385, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
