174-E09-113R001 - NorComp

Description: D-Sub Standard Connectors 9POS Male 5A Steel

Download 174-E09-113R001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
174-E09-113R001 - NorComp - PCB symbol
click to zoom
PCB Footprints

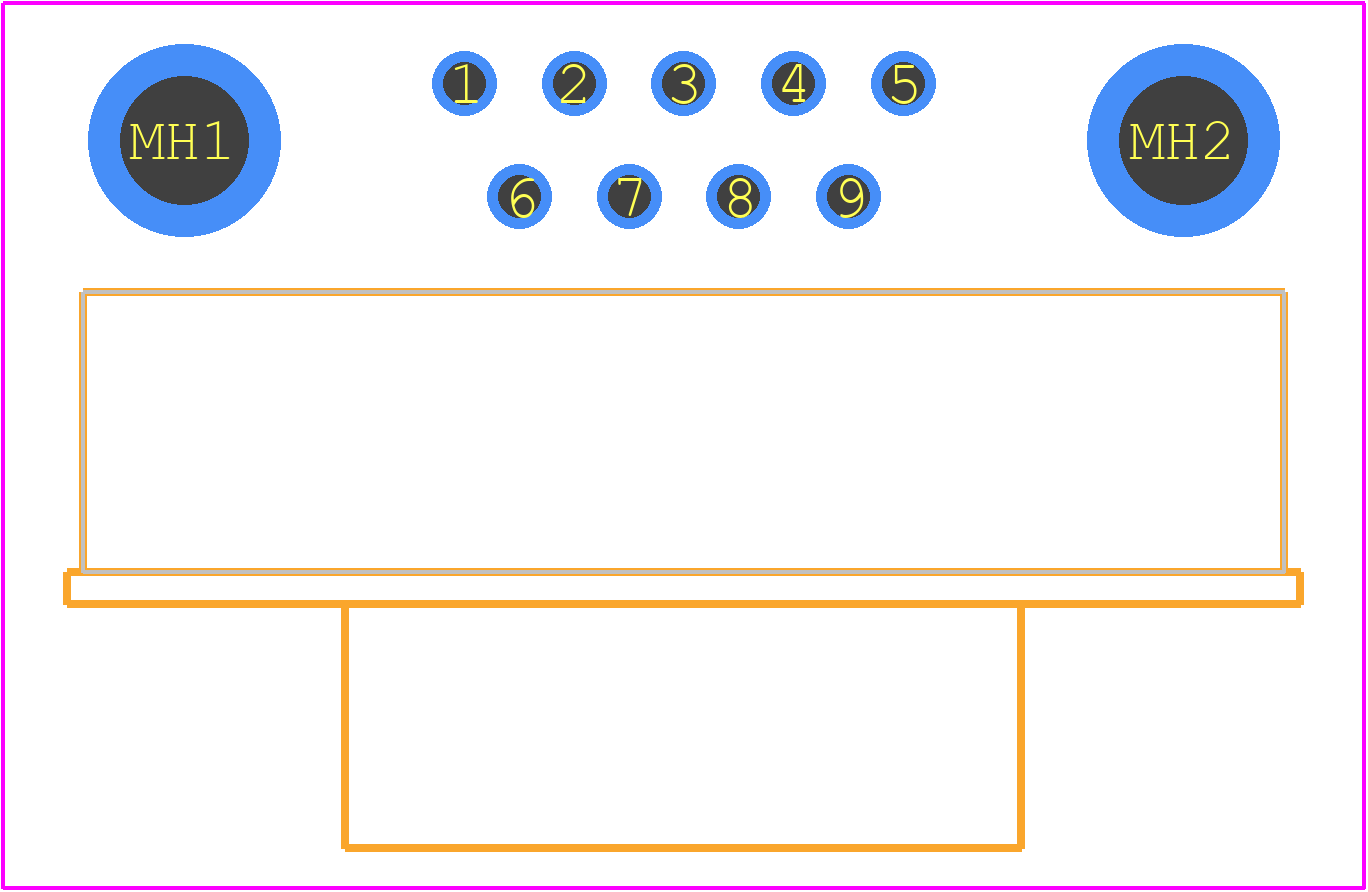

174-E09-113R001 - NorComp PCB footprint - Other - Other - 174-E09-113R001-3
click to zoom
3D Models
174-E09-113R001 - NorComp - 3D model - Other - 174-E09-113R001-3
click to zoom

174-E09-113R001 Details

  • Manufacturer Part Number:

    174-E09-113R001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.5

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE6T

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

174-E09-113R001 Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads.
  • Yes, the 174-E09-113R001 is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, industrial, and transportation.
  • Yes, the connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity up to 95% RH.
  • The mating cycle life of the 174-E09-113R001 is rated for a minimum of 500 mating cycles.
  • The 174-E09-113R001 is designed to be compatible with other NorComp products, including their range of connectors, adapters, and cable assemblies.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

174-E09-113R001 Overview

Use the download button to access the 174-E09-113R001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 174-E, or try a keyword search, such as D Type Connectors
