The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
Yes, the 174-E15-113R001 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
Yes, the connector is rated IP67 (IEC 60529) and can withstand exposure to water and dust, making it suitable for outdoor use.
The operating temperature range for the 174-E15-113R001 is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of environments.
While the datasheet specifies AWG 18-24, the connector can accommodate wire sizes from AWG 16 to AWG 26, but the wire stripping length and screw torque may need to be adjusted accordingly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
174-E15-113R001 Overview

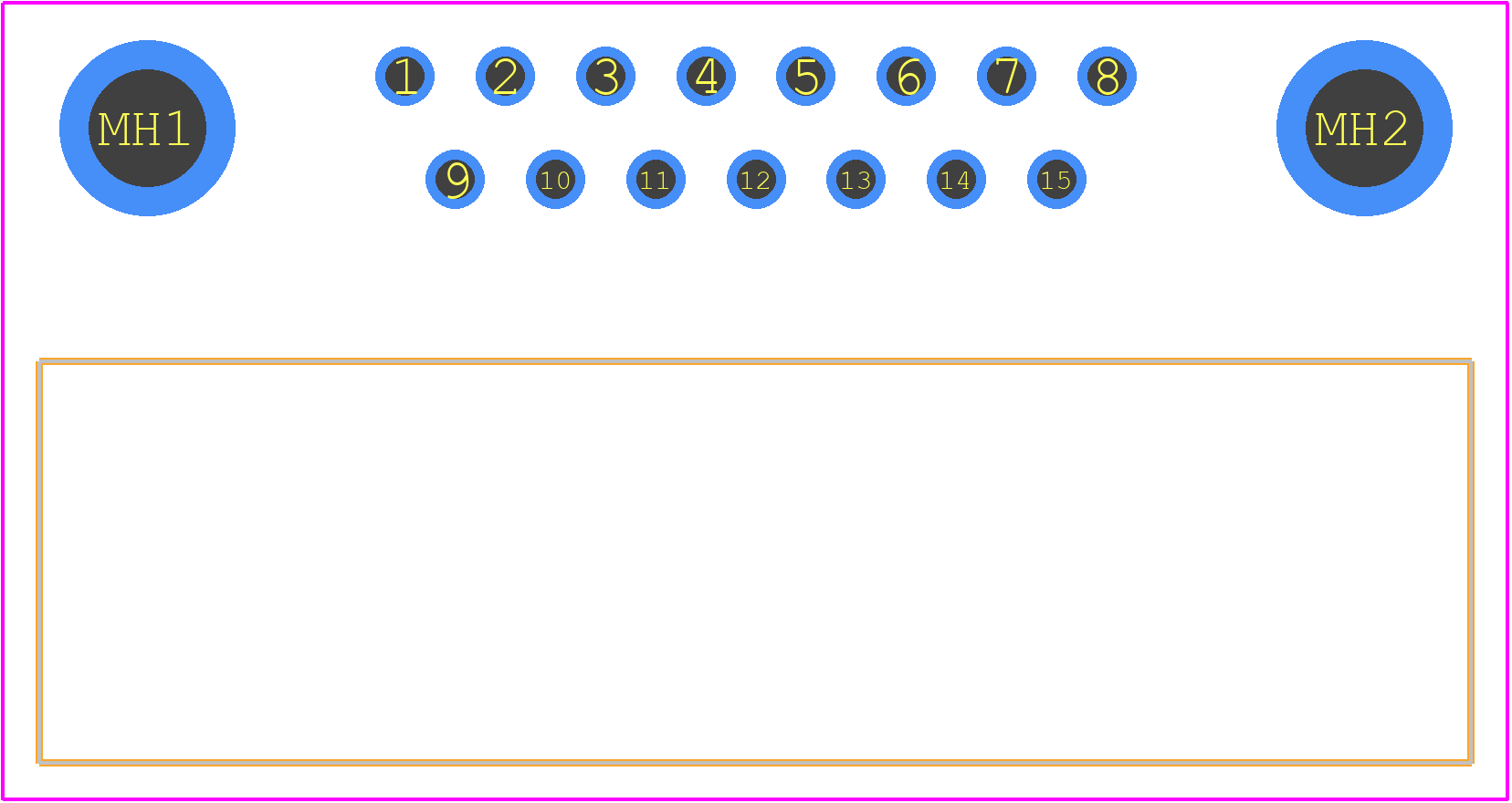

Use the download button to access the 174-E15-113R001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 174-E,
or try a keyword search, such as D Type Connectors
