174-E50-113R001 - NorComp

Description: D-Sub Standard Connectors 50POS Male 5A Steel

Download 174-E50-113R001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
174-E50-113R001 - NorComp - PCB symbol
click to zoom

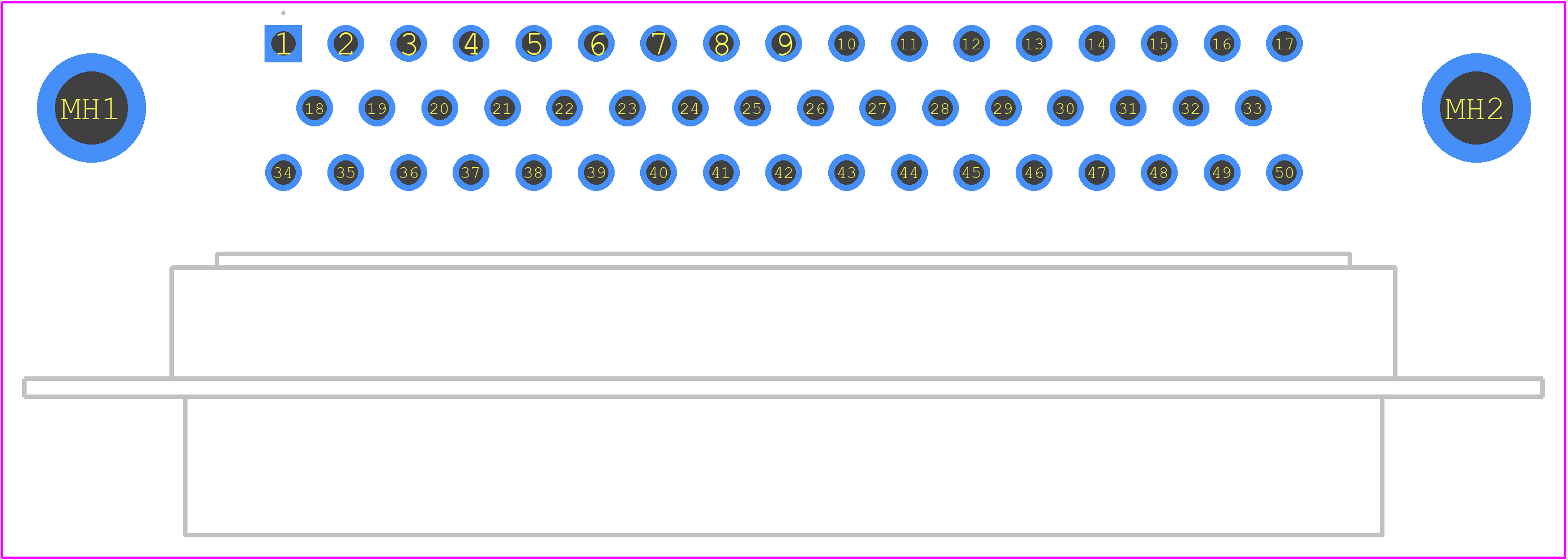

PCB Footprints
174-E50-113R001 - NorComp PCB footprint - Other - Other - 174-E50-113R001-2
click to zoom

174-E50-113R001 Details

  • Manufacturer Part Number:

    174-E50-113R001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    9

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE6T

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    5/D

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

174-E50-113R001 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.8 Nm (4-6 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 174-E50-113R001 is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 174-E50-113R001 has a IP67 rating, making it suitable for outdoor use. However, it's essential to ensure proper sealing and protection from environmental factors such as moisture, dust, and extreme temperatures.
  • The 174-E50-113R001 has an operating temperature range of -40°C to 125°C (-40°F to 257°F). Exceeding this range may affect the connector's performance and reliability.
  • While the datasheet specifies AWG 24-20 wire sizes, the connector can accommodate other wire sizes with proper termination and strain relief. However, it's essential to consult with NorComp or a qualified engineer to ensure compatibility and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

174-E50-113R001 Overview

Use the download button to access the 174-E50-113R001 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 174-E, or try a keyword search, such as D Type Connectors
