1744427-8 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: PCB Mount Orientation Vertical | Number of Rows 1 | Number of Positions 8 | Connector Contact Load Condition Fully Loaded | Contact Features: Contact Underplating Material Nickel | Contact Underplating Material Thickness 50 MICIN | Mating Square Post Dimension .045 INCH | Contact Base Material Brass | Contact Mating Area Plating Material Finish Matte | PCB Contact Termination Area Plating Material Thickness 39.37 MICIN | Contact Mating A

Download 1744427-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1744427-8 - TE Connectivity - PCB symbol
click to zoom

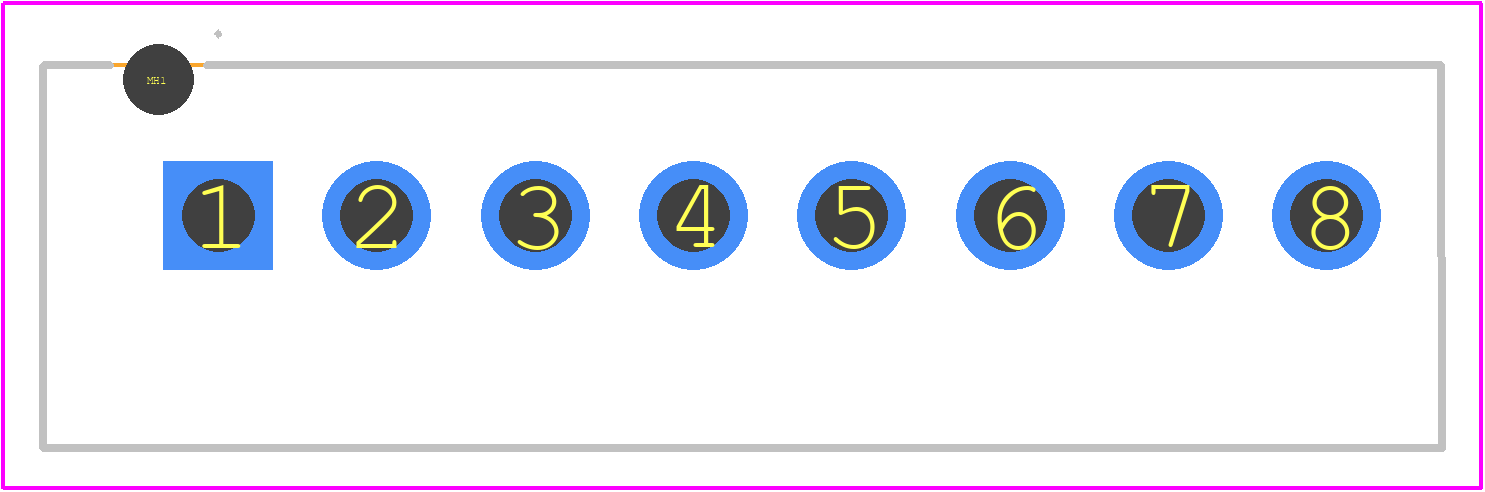

PCB Footprints
1744427-8 - TE Connectivity PCB footprint - Other - Other - 1744427-8-2
click to zoom
3D Models
1744427-8 - TE Connectivity - 3D model - Other - 1744427-8-2
click to zoom

1744427-8 Details

  • Manufacturer Part Number:

    1744427-8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    15 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.6

  • Board Mounting Option:

    LOCATING POST

  • Body Breadth:

    0.37 inch

  • Body Depth:

    0.472 inch

  • Body Length:

    1.375 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    39.37u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    8 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.142 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-2

1744427-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1744427-8 connector is designed to withstand vibrations up to 10 G (98 m/s²) according to IEC 61373 Cat. 2. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1744427-8 connector has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 1744427-8 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). It's essential to consider the temperature range when selecting materials and designing the application.
  • Yes, the 1744427-8 connector is part of the TE Connectivity AMPSEAL 16 connector family, which offers a range of compatible products. You can use this connector with other AMPSEAL 16 products, such as housings, contacts, and accessories, to create a custom solution.
