1747642-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Vertical | Number of Signal Positions 40 | Number of Rows 2 | Number of Sections 1 | Number of Positions 40 | Contact Features: Contact Mating Area Plating Material Tin | Contact Size .64mm | Mating Tab Width .025 INCH | Contact Type Tab | Mating Tab Thickness .025 INCH | Mating Tab Thickness .64 MM | Mating Tab Width .64 MM | Dimensions: Profile Height from PCB 20 MM | Connector Width 59 MM | Profile Height from PCB

Download 1747642-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

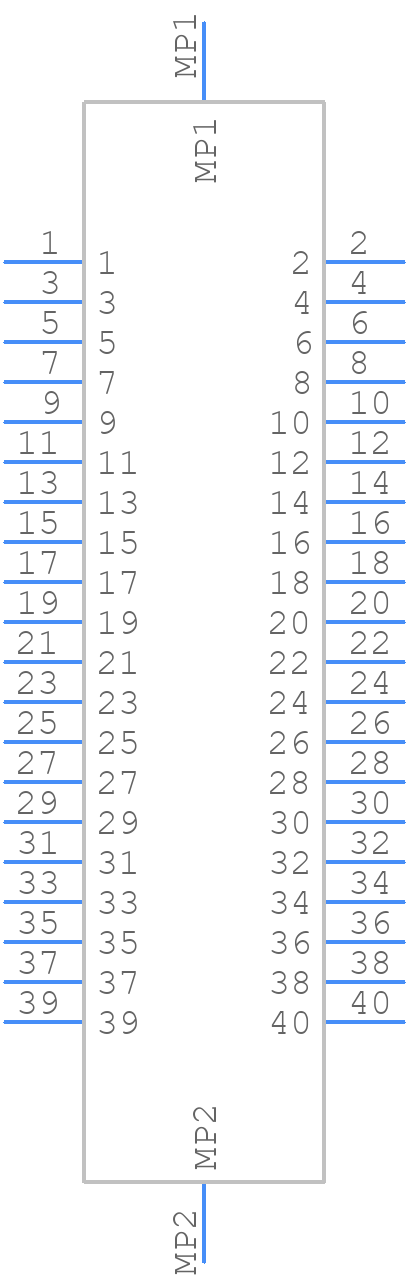

Symbol
1747642-2 - TE Connectivity - PCB symbol
click to zoom

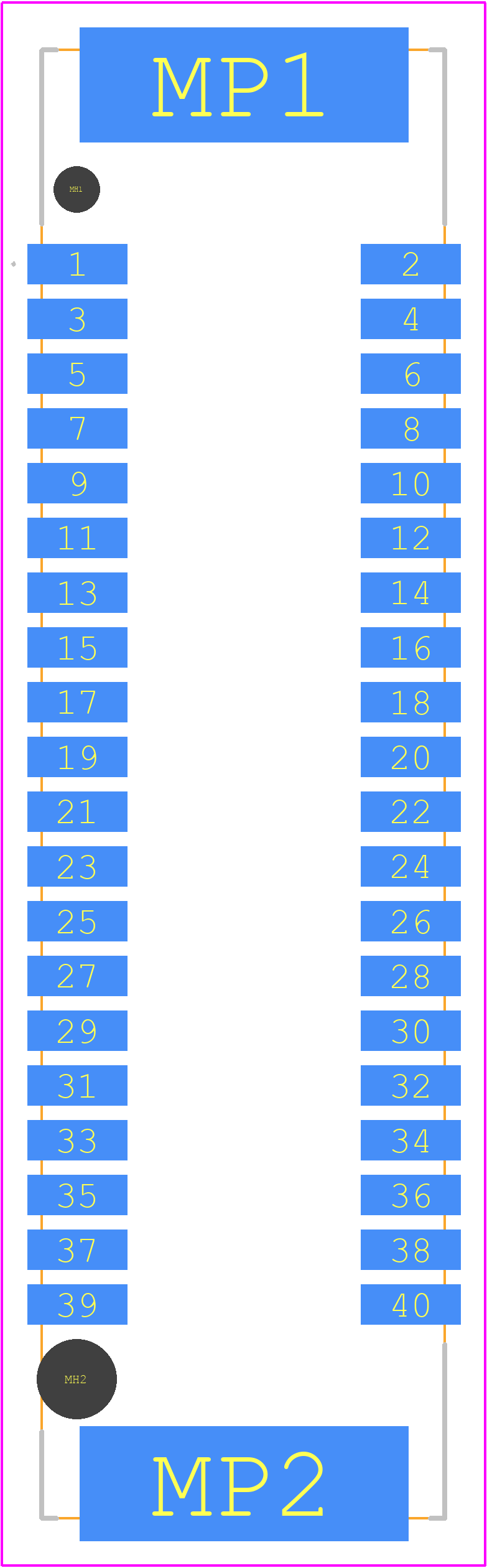

PCB Footprints
1747642-2 - TE Connectivity PCB footprint - Other - Other - 1747642-2-2
click to zoom
3D Models
1747642-2 - TE Connectivity - 3D model - Other - 1747642-2-2
click to zoom

1747642-2 Details

  • Manufacturer Part Number:

    1747642-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    2.323 inch

  • Body Depth:

    2.323 inch

  • Body Length:

    0.638 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

1747642-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 1747642-2 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1747642-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines to ensure proper connector performance and prevent damage. Consult their application notes and design guides for more information.
  • The 1747642-2 connector is designed to withstand some environmental stressors, but it's crucial to evaluate the specific application and environmental conditions. Consult TE Connectivity's environmental testing data and application notes for more information.
