1753381 - Phoenix Contact

Description: CCDN 2,5/10-G1F-5,08 P26 THR - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 20, number of rows: 2, number of positions: 10, number of connections: 20, product range: CCDN 2,5/..-G1F-THR, pitch: 5.08 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON

Download 1753381 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1753381 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

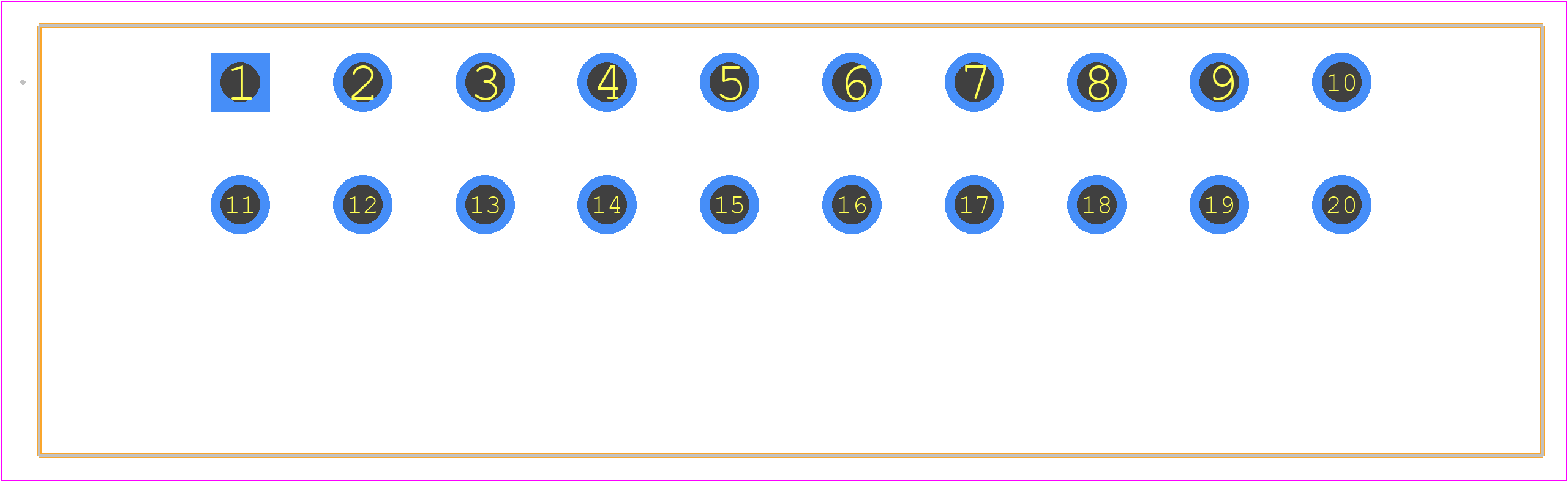

1753381 - Phoenix Contact PCB footprint - Other - Other - 1753381
click to zoom
3D Models
1753381 - Phoenix Contact - 3D model - Other - 1753381
click to zoom

1753381 Details

  • Manufacturer Part Number:

    1753381

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Slovakia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.65

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    10

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CUL; EAC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1753381 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material.
  • Yes, the 1753381 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing and validation for specific applications.
  • The 1753381 connector has a protection rating of IP67, making it suitable for outdoor use and exposure to dust and water. However, it's essential to ensure proper sealing and installation to maintain the IP rating.
  • While the datasheet specifies a particular wire gauge and type, it's possible to use other gauges or types with proper validation and testing. However, this may affect the connector's performance and reliability.
  • The 1753381 connector is rated for operation in temperatures ranging from -40°C to 125°C. However, it's essential to consider the specific application and potential temperature extremes.
