1757827-1 - TE Connectivity

Description: Body Features: Rear Shell Material Steel | Front Shell Material Steel | D-Sub Connector Insert Arrangement MS18273-1 | Front Shell Plating Material Zinc | Rear Shell Plating Material Zinc | Configuration Features: Number of Positions 9 | PCB Mount Orientation Vertical | Power/Signal/Coax Combination No | Contact Features: Contact Base Material Brass | Contact Size Size 20 | Contact Type Pin | Contact Mating Area Plating Material Gold | Contact Base Material Beryllium Copper | Contact Current Rating (Max) 5

Download 1757827-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1757827-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

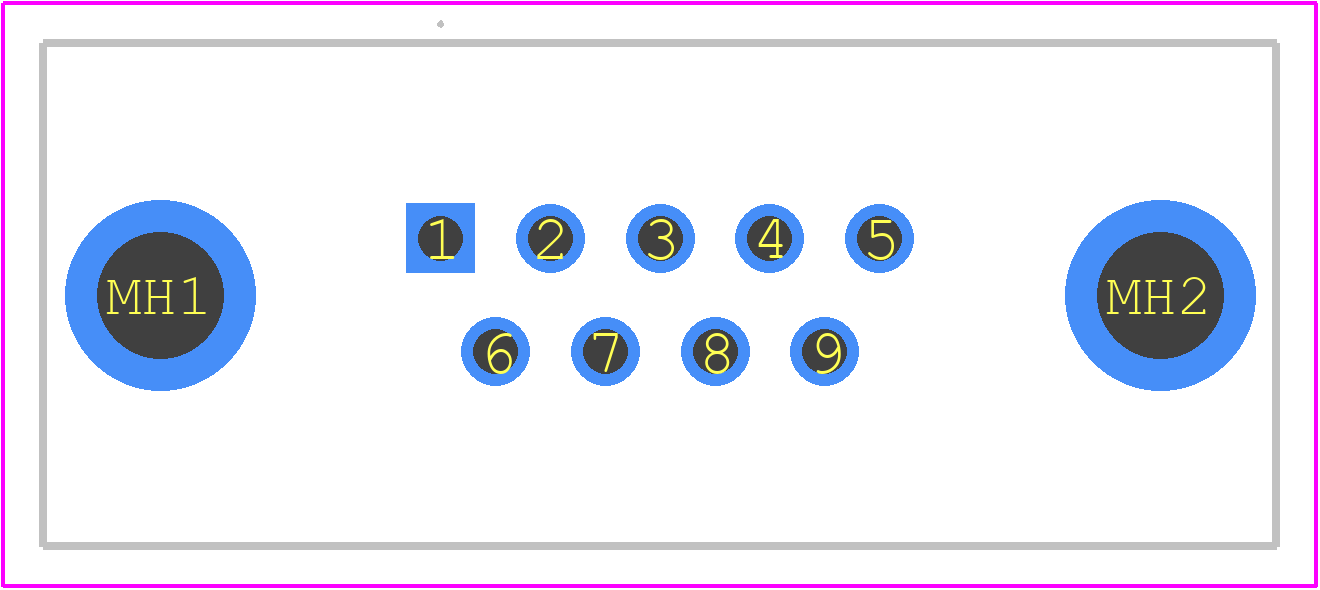

1757827-1 - TE Connectivity PCB footprint - Other - Other - 1757827-1-1
click to zoom
3D Models
1757827-1 - TE Connectivity - 3D model - Other - 1757827-1-1
click to zoom

1757827-1 Details

  • Manufacturer Part Number:

    1757827-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.5

  • Connector Type:

    D SUBMINIATURE CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1757827-1 Overview

Use the download button to access the 1757827-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17578, or try a keyword search, such as D Type Connectors
