1757836-5 - TE Connectivity

Description: Body Features: Rear Shell Plating Material Zinc | Front Shell Plating Material Zinc | Front Shell Material Steel | Rear Shell Material Steel | D-Sub Connector Insert Arrangement MS18277-1 | Configuration Features: PCB Mount Orientation Right Angle | Number of Positions 50 | Power/Signal/Coax Combination No | Contact Features: Contact Mating Area Plating Material Gold | Contact Base Material Beryllium Copper | Contact Size Size 20 | Contact Current Rating (Max) 5 AMP | Contact Base Material Brass | Contact T

Download 1757836-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1757836-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

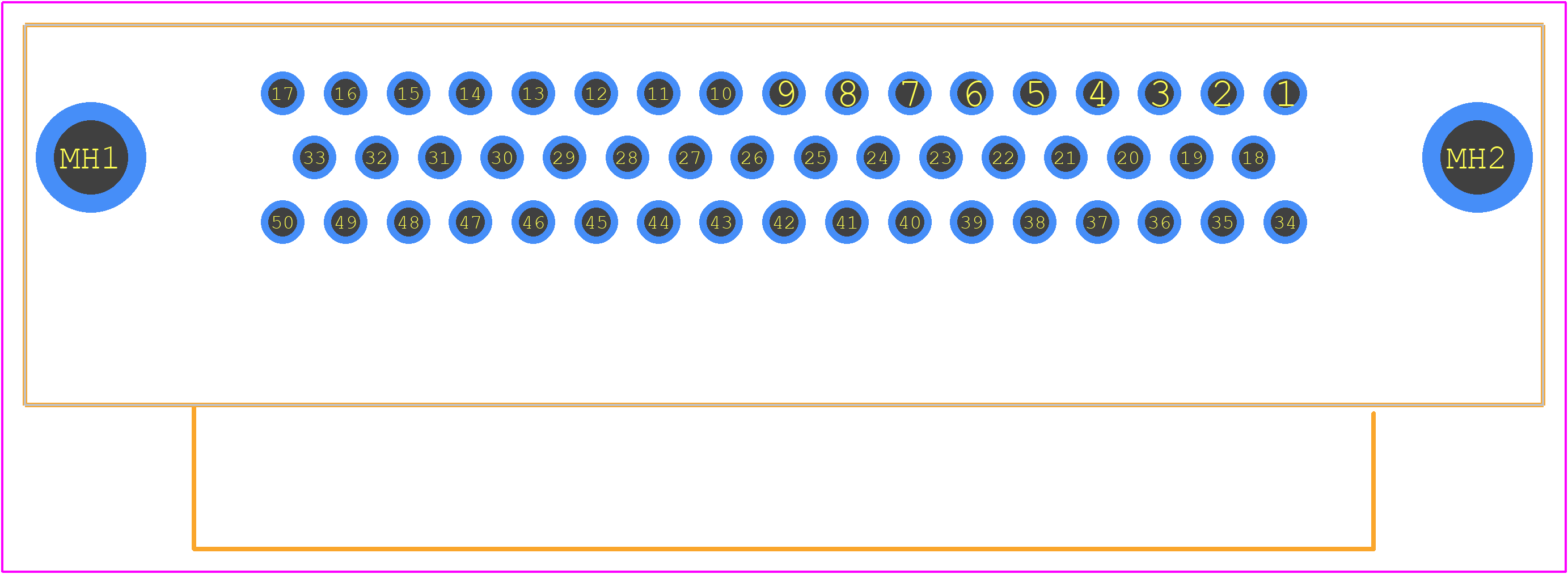

1757836-5 - TE Connectivity PCB footprint - Other - Other - 1757836-5-1
click to zoom
3D Models
1757836-5 - TE Connectivity - 3D model - Other - 1757836-5-1
click to zoom

1757836-5 Details

  • Manufacturer Part Number:

    1757836-5

  • Brand Name:

    TE Connectivity

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Connector Type:

    D SUBMINIATURE CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1757836-5 Overview

Use the download button to access the 1757836-5 schematic symbol, PCB footprint, and 3D model.
