175973-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Right Angle | Number of Positions 8 | Number of Rows 2 | Contact Features: Contact Type Tab | Contact Mating Area Plating Material Tin (Sn) | Housing Features: Centerline (Pitch) .098 INCH | Centerline (Pitch) 2.5 MM | Mechanical Attachment: Mating Alignment With | PCB Mount Retention Without | PCB Mount Alignment With | Connector Mounting Type Board Mount | Other: Interface Number 175964 | Packaging Features: Packagi

Download 175973-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
175973-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

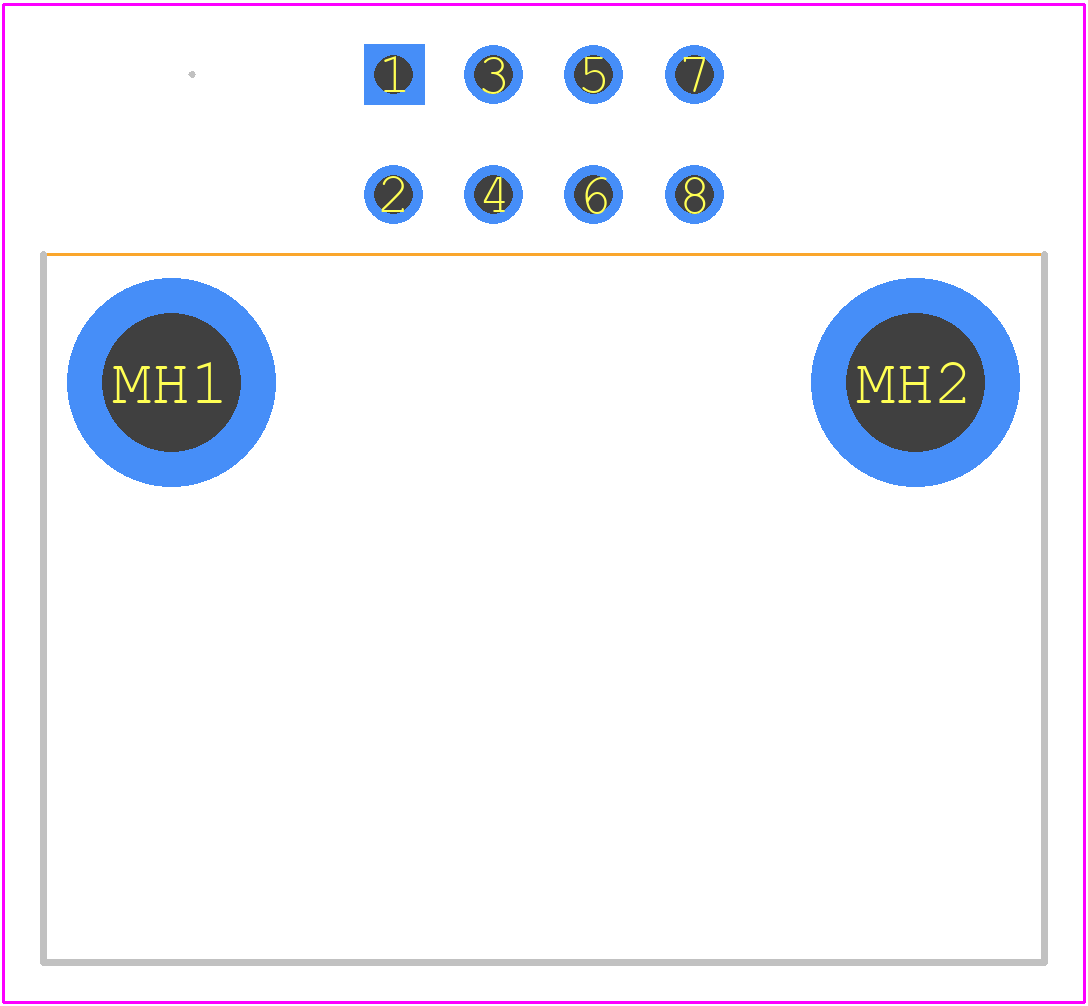

175973-2 - TE Connectivity PCB footprint - Other - Other - 175973-2-1
click to zoom
3D Models
175973-2 - TE Connectivity - 3D model - Other - 175973-2-1
click to zoom

175973-2 Details

  • Manufacturer Part Number:

    175973-2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    MULTILOCK

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    175964-2

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

175973-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals.
  • Yes, the 175973-2 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
  • While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes ranging from AWG 18 to AWG 26, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
  • The operating temperature range for the 175973-2 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • The 175973-2 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for up to 30 minutes, making it suitable for use in humid or wet environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

175973-2 Overview

Use the download button to access the 175973-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17597, or try a keyword search, such as Combination Line Connectors
