1762819 - Phoenix Contact

Description: PCV 35 HC/ 4-GF-15,00 - PCB headers, nominal cross section: 35 mm<sup>2</sup>, color: green, nominal current: 125 A, rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: PCV 35 HC/..-GF, pitch: 15 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4.6 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 35, Pin connector pattern a

Download 1762819 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

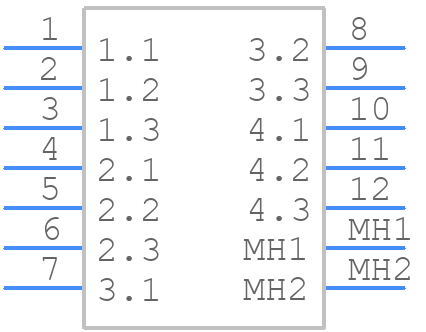

1762819 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

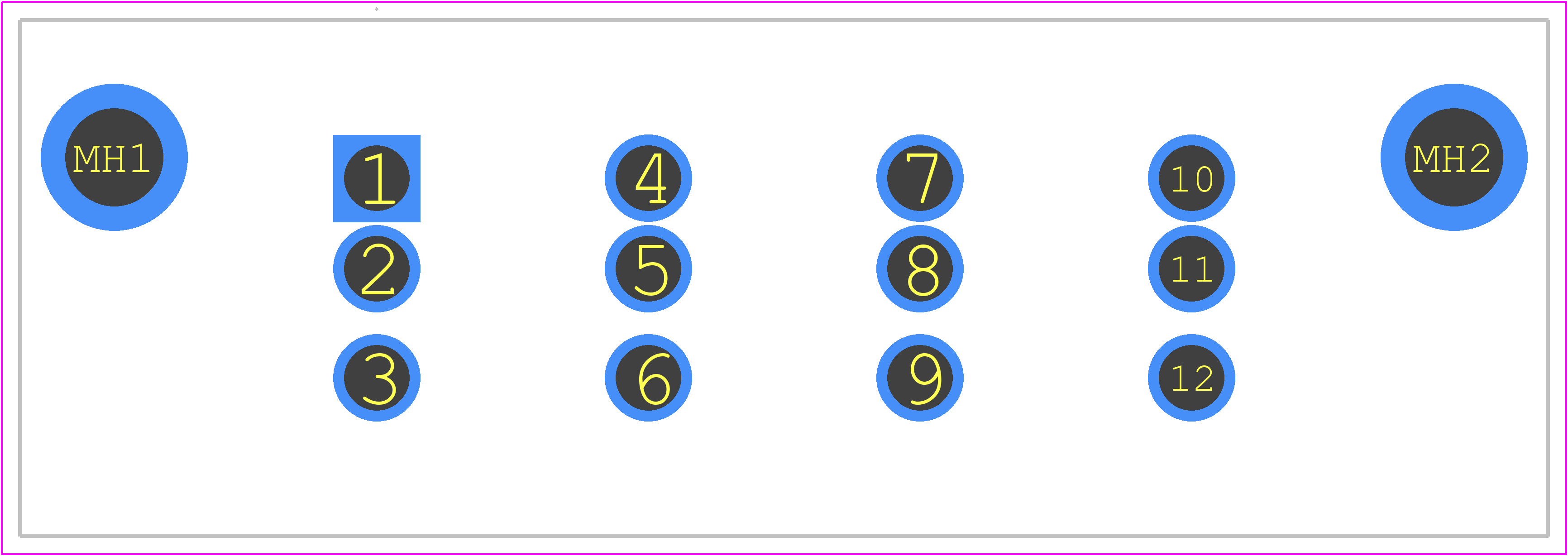

1762819 - Phoenix Contact PCB footprint - Other - Other - 1762819
click to zoom
3D Models
1762819 - Phoenix Contact - 3D model - Other - 1762819
click to zoom

1762819 Details

  • Manufacturer Part Number:

    1762819

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1762819 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1762819 is -40°C to 125°C.
  • Yes, the 1762819 is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The 1762819 is not certified for use in hazardous locations. If you need a product for hazardous locations, consider Phoenix Contact's ATEX- or IECEx-certified products.
  • The maximum wire size that can be connected to the 1762819 is 2.5 mm² (AWG 14).
  • Yes, the 1762819 is designed to be compatible with other Phoenix Contact products, including their connectors, cables, and terminals.
