1769469 - Phoenix Contact

Description: PC 5/ 4-G-7,62 BK - PCB headers, nominal cross section: 6 mm<sup>2</sup>, color: black, nominal current: 32 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of rows: 1, number of positions: 4, product range: PC 5/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Pin connector pattern alignment: Standard, locking: without, mounting method: without, t

Download 1769469 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1769469 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

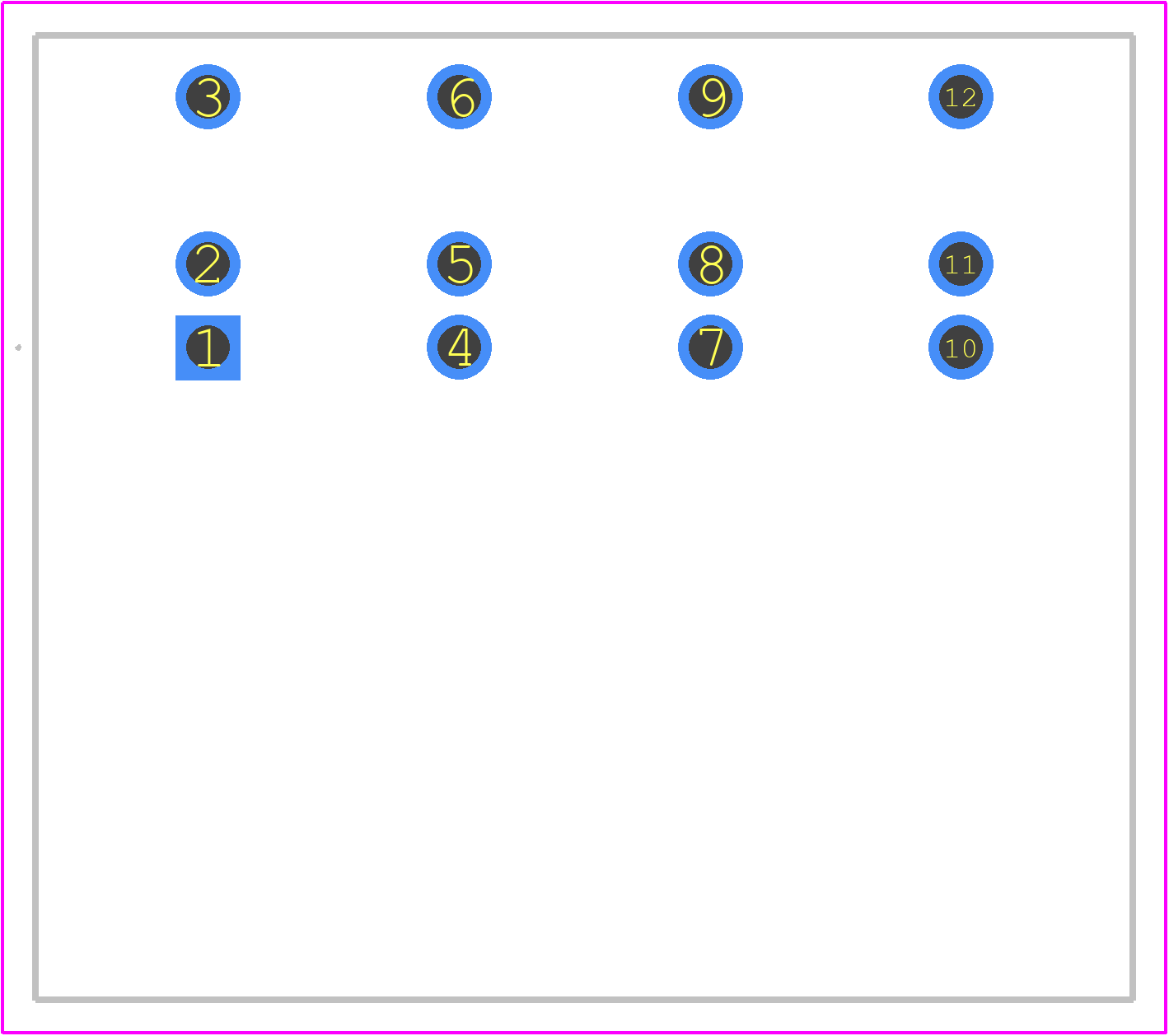

1769469 - Phoenix Contact PCB footprint - Other - Other - 1769469
click to zoom
3D Models
1769469 - Phoenix Contact - 3D model - Other - 1769469
click to zoom

1769469 Details

  • Manufacturer Part Number:

    1769469

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1769469 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1769469 connector is designed to withstand high vibrations and is suitable for use in applications with intense mechanical stress, such as in industrial automation or transportation systems.
  • The 1769469 connector has a high level of resistance to chemicals and corrosive substances, including oil, fuel, and saltwater. However, it's essential to check the specific chemical resistance for your application.
  • The 1769469 connector has an IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter. However, it's crucial to ensure proper sealing and installation to maintain the IP67 rating.
  • The 1769469 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including those with extreme temperature fluctuations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1769469 Overview

Use the download button to access the 1769469 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17694, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
