STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER
Fastening Method:
CONNECTOR
Mounting Type:
BOARD
Number of Decks:
1
Number of Rows:
1
Number of Ways:
12
Rated Current:
10 A
Rated Voltage:
300 V
Safety Approval:
CSA; DIN; IEC; PCT; UL
Terminal and Terminal Block Type:
STRIP TERMINAL BLOCK
1775332001 Frequently Asked Questions (FAQs)
The recommended torque is typically specified in the installation instructions or manual provided by Weidmüller. However, as a general guideline, a torque of 0.5-1.5 Nm is commonly used for M12 connectors like the 1775332001.
Yes, the 1775332001 connector is designed to withstand vibrations and shocks. It meets the requirements of IEC 61373 Category 2, which ensures reliable operation in environments with high vibrations and shocks.
The 1775332001 connector has an IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating. Additionally, the connector's materials and coatings are designed to withstand outdoor use and harsh environmental conditions.
The 1775332001 connector is designed for use with specific cable types and sizes. While it may be possible to use it with other cables, it's essential to consult with Weidmüller or a qualified engineer to ensure compatibility and to avoid compromising the connector's performance or safety.
The 1775332001 connector is designed to operate within a temperature range of -40°C to +85°C. However, it's essential to consult the datasheet or installation manual for specific temperature ratings and derating factors that may apply.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1775332001 Overview

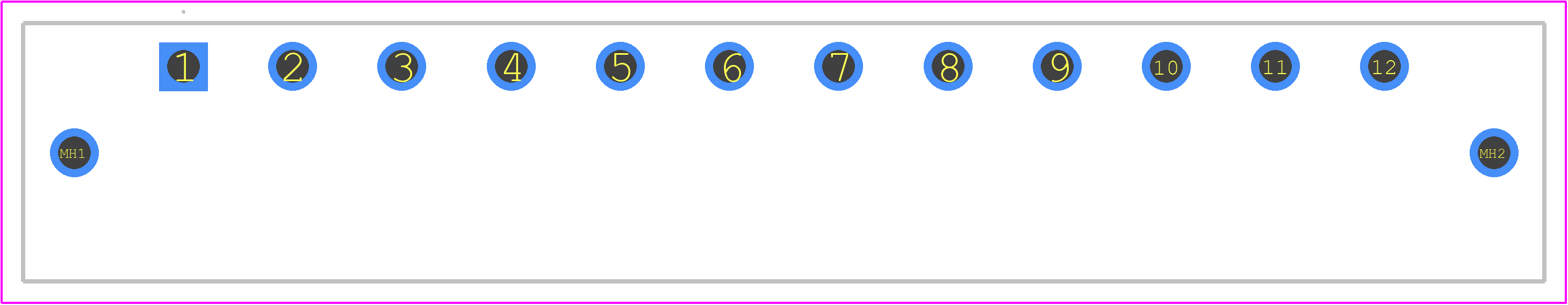

Use the download button to access the 1775332001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17753,
or try a keyword search, such as Terminals and Terminal Blocks
