1776249-1 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Primary Product Color Black | Barrier Strip Style Dual Barrier | Configuration Features: Number of Positions 5 | Number of Levels 1 | Number of Rows 1 | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 5 AMP | Contact Base Material Copper Alloy | Contact Current Rating (Max) 20 AMP | Dimensions: Product Length 49.17 MM | Wire Size .326 – 3.31 MMSQ | Wire Size 22 – 12 AWG | Product Length 1.936 INCH | Electric

Download 1776249-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1776249-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

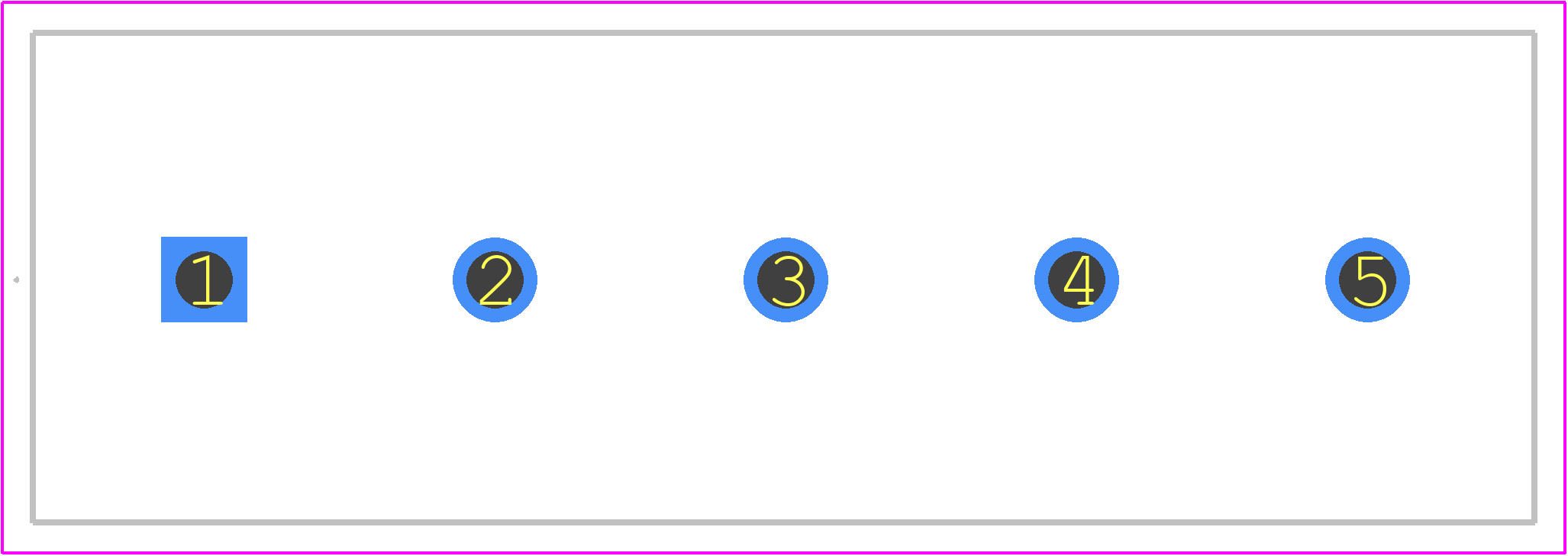

1776249-1 - TE Connectivity PCB footprint - Other - Other - 1776249-1-1
click to zoom
3D Models
1776249-1 - TE Connectivity - 3D model - Other - 1776249-1-1
click to zoom

1776249-1 Details

  • Manufacturer Part Number:

    1776249-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.55

  • Additional Feature:

    STANDARD: UL 94V-0, THERMOPLASTIC

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    20 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3.31 mm2

  • Wire Gauge:

    12 AWG

1776249-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1776249-1 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 61373. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1776249-1 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust. However, it's essential to follow proper sealing and installation guidelines to maintain the IP67 rating.
  • The 1776249-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
  • The 1776249-1 connector is designed to be compatible with other TE Connectivity products, such as their wire and cable assemblies. However, compatibility with third-party components should be verified through testing and validation to ensure reliable performance.
