1776392001 - Weidmüller

Description: PCB connector (board connection), 320 V, 27.5 A, Pitch in mm: 5.08, Number of poles: 5, THT/THR solder connection, Box

Download 1776392001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1776392001 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

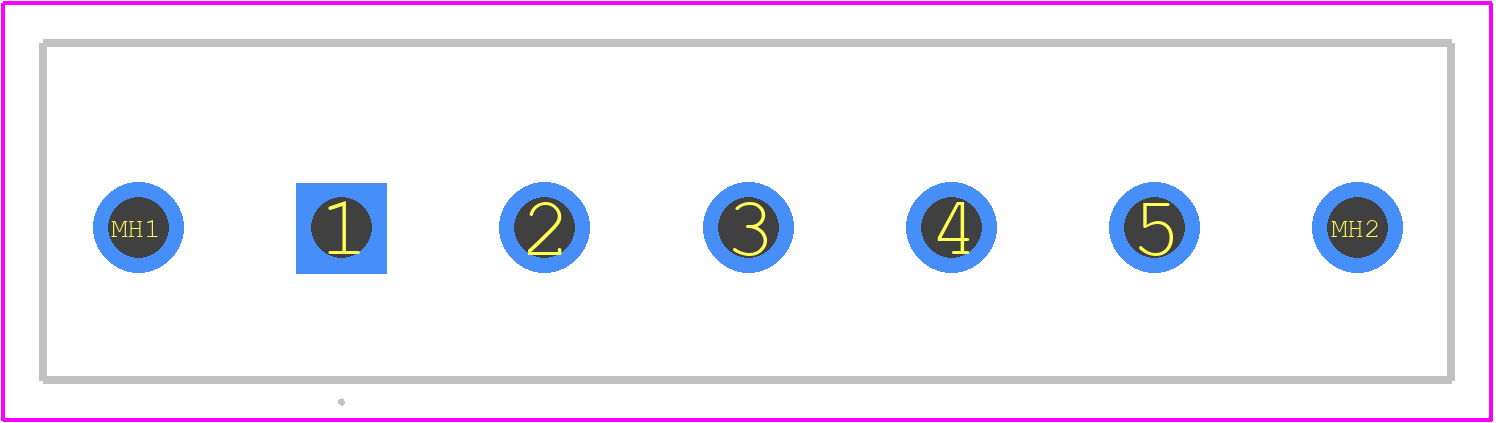

1776392001 - Weidmüller PCB footprint - Other - Other - 1776392001
click to zoom
3D Models
1776392001 - Weidmüller - 3D model - Other - 1776392001
click to zoom

1776392001 Details

  • Manufacturer Part Number:

    1776392001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL94V-0, GF LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1776392001 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1776392001 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1776392001 is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces, allowing for easy integration into existing systems.
  • The maximum current rating of the 1776392001 is 10A per pin, making it suitable for use in applications that require high current handling.
  • Yes, the 1776392001 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring that it meets the necessary environmental and safety standards.
  • The typical lead time for delivery of the 1776392001 is 2-4 weeks, depending on the quantity and availability of the product.
