1776540 - Phoenix Contact

Description: MSTB 2,5/ 6-GF-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MSTB 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern

Download 1776540 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1776540 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

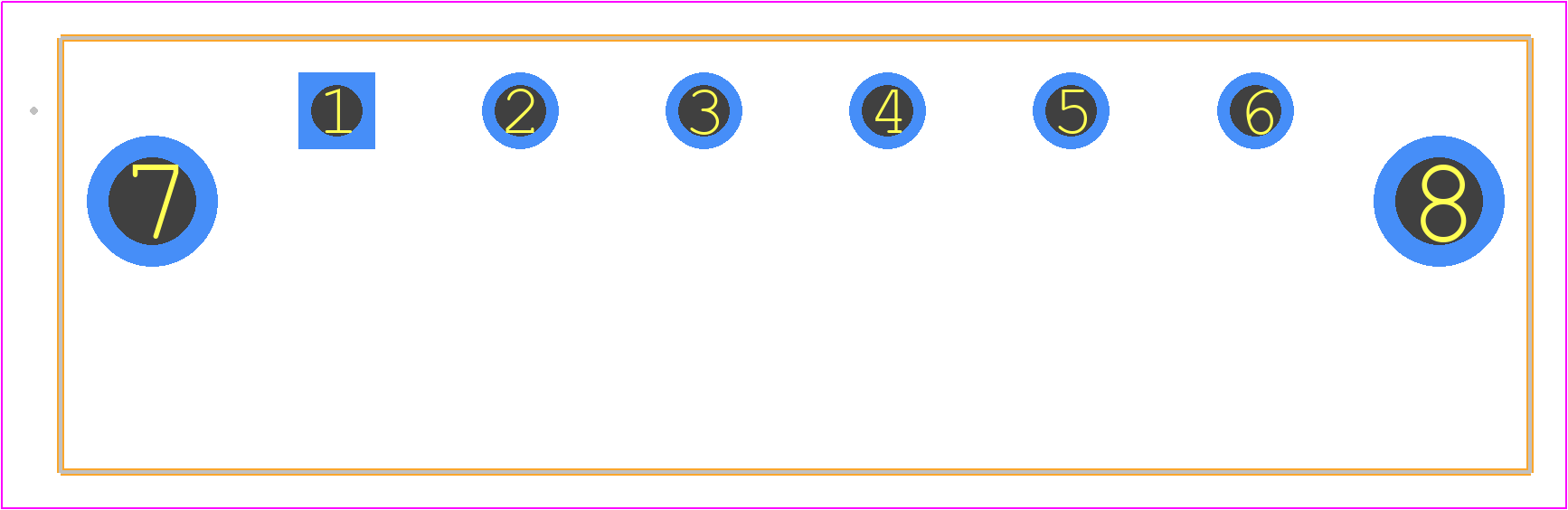

1776540 - Phoenix Contact PCB footprint - Other - Other - 1776540
click to zoom
3D Models
1776540 - Phoenix Contact - 3D model - Other - 1776540
click to zoom

1776540 Details

  • Manufacturer Part Number:

    1776540

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.57

  • Additional Feature:

    SAFETY APPROVAL: VDE; STANDARD: UL 94V-0, PBT

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CSA; CUL; EAC; GL; RS; UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1776540 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting.
  • Yes, the 1776540 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain reliability.
  • The 1776540 connector is rated for operating temperatures between -40°C and 125°C and can withstand humidities up to 95% RH. However, it's essential to consider the specific environmental conditions and potential derating factors.
  • The maximum current rating for each contact is 12 A, but it's essential to consider the specific application, wire size, and insulation to ensure safe and reliable operation.
  • Yes, the 1776540 connector is designed to be compatible with other Phoenix Contact products, including PCB terminals and connectors, to provide a comprehensive connection solution.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1776540 Overview

Use the download button to access the 1776540 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17765, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
