178-H15-513R577 - NorComp

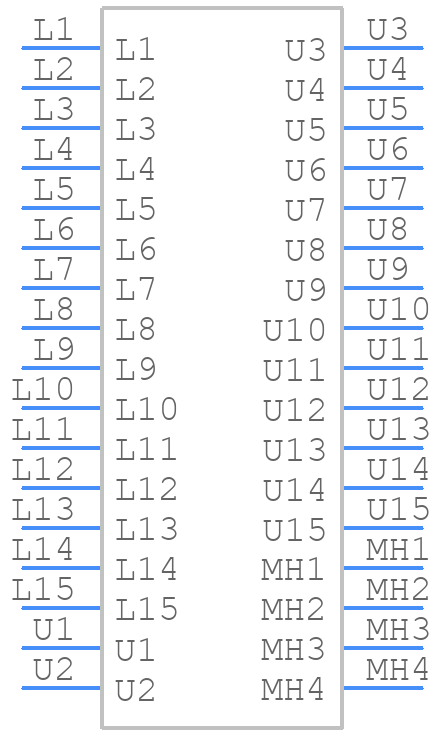

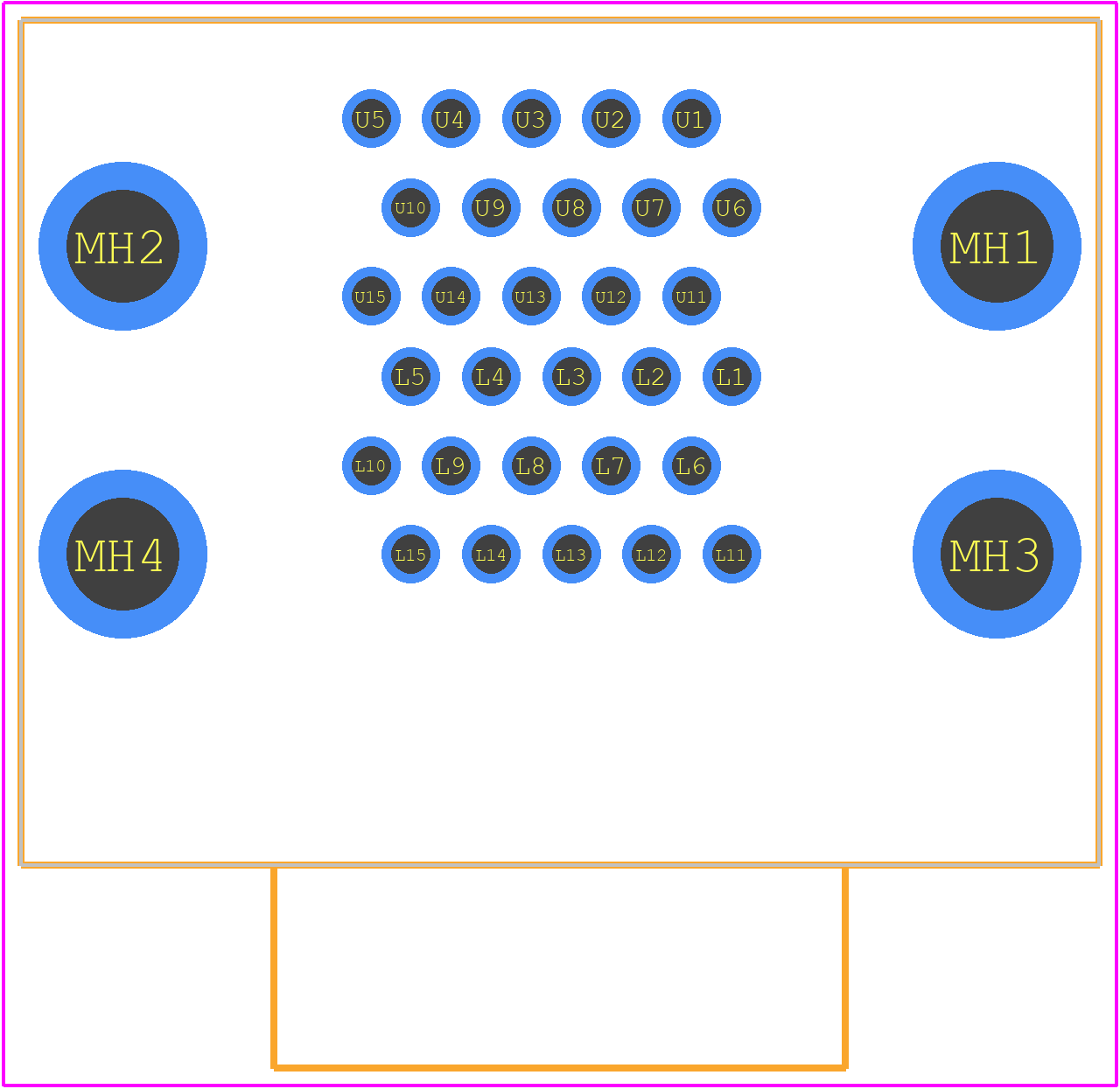

178-H15-513R577 Details

• Manufacturer Part Number:

  178-H15-513R577

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  NorComp

• YTEOL:

  8

• Board Mounting Option:

  HOLE 0.12

• Body Breadth:

  1.244 inch

• Body Depth:

  0.9 inch

• Body Length:

  1.213 inch

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  FEMALE AND FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  25 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1400VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insertion Force-Max:

  58.84 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYAMIDE9T

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40 UNC

• Mounting Option 2:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  TWO

• Number Of PCB Rows:

  2+2+2

• Number of Rows Loaded:

  2+2+2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Shell Size:

  2/A; 2/A

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  2.29 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  30

• UL Flammability Code:

  96V-0

• Withdrawl Force-Min:

  11.768 N
