1780549 - Phoenix Contact

Description: FFKDSA1/V1-7,62- 3 - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 3, number of rows: 1, number of positions per row: 3, product range: FFKDS(A)/V1, pitch: 7.62 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging: pa

Download 1780549 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1780549 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

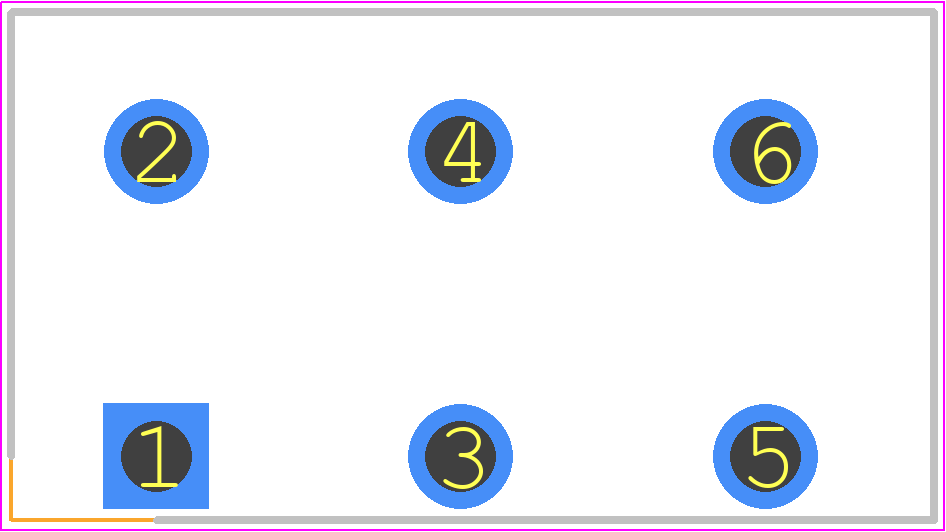

1780549 - Phoenix Contact PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - 1780549
click to zoom
3D Models
1780549 - Phoenix Contact - 3D model - Header, Receptacle - Straight PTH Box - 1780549
click to zoom

1780549 Details

  • Manufacturer Part Number:

    1780549

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE,SAFETY APPROVAL:CUL;IECEE

  • Fastening Method:

    PUSH-IN/SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    10 A

  • Rated Voltage:

    500 V

  • Safety Approval:

    CB;CCA;EAC;EX;KEMA;KEUR;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1780549 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1780549 is -40°C to 125°C.
  • Yes, the 1780549 is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 1780549 is designed to withstand high vibrations, with a vibration resistance of 10 g (according to IEC 60068-2-6).
  • The maximum current rating of the 1780549 is 12 A per pin.
  • Yes, the 1780549 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
