1783690000 - Weidmüller

Description: PCB terminal, 1000 V, 101 A, Pitch in mm: 15.00, 25 mm², Number of poles: 4, Clamping yoke connection, THT solder connection, 90°, Box

Download 1783690000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

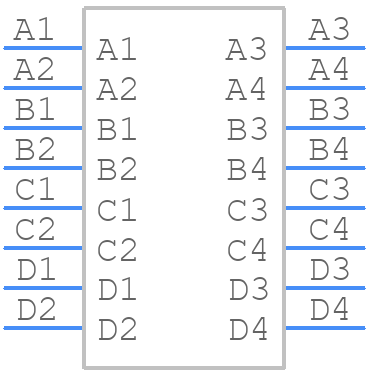

1783690000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

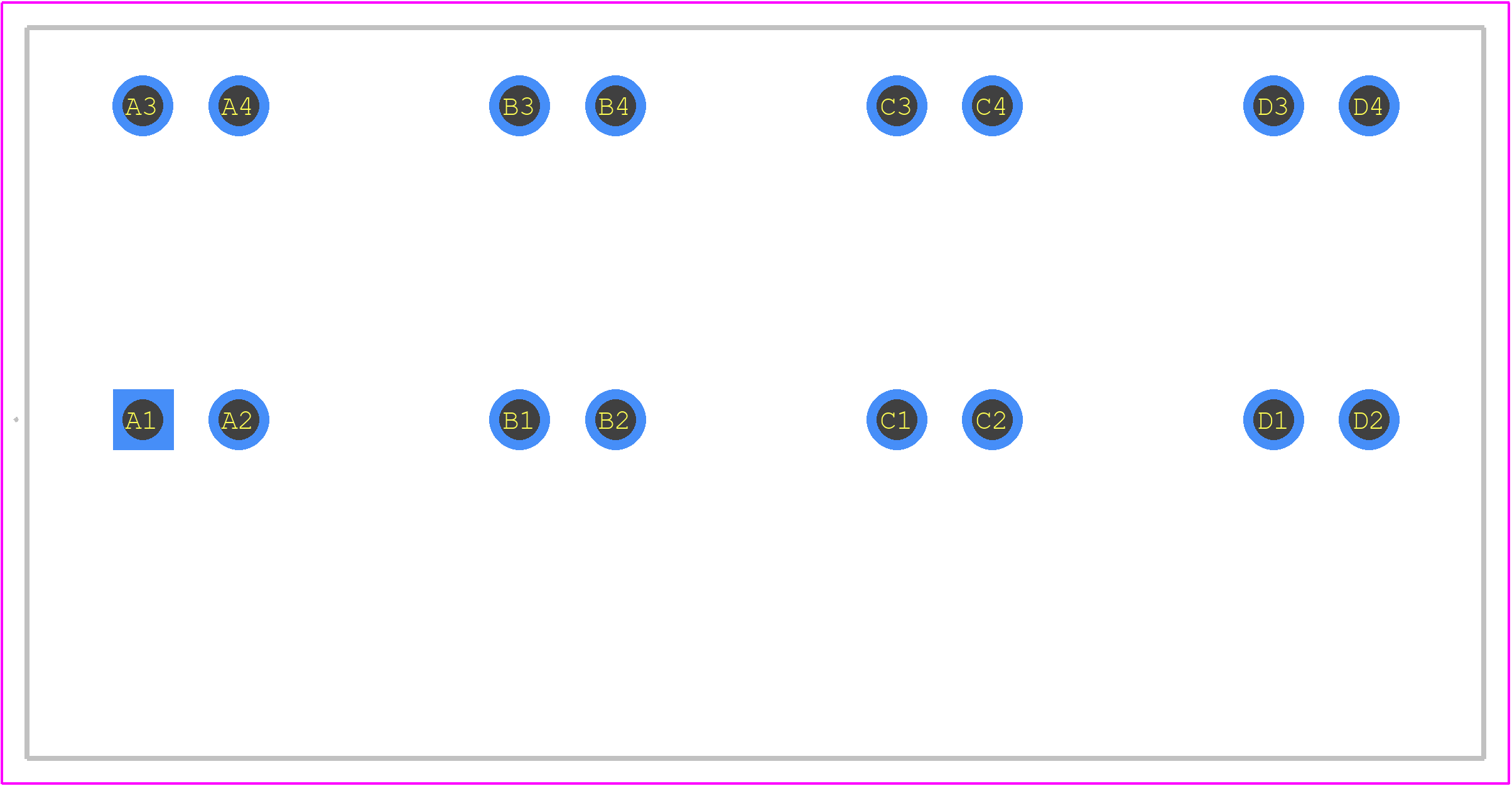

1783690000 - Weidmüller PCB footprint - Other - Other - 1783690000-3
click to zoom
3D Models
1783690000 - Weidmüller - 3D model - Other - 1783690000-3
click to zoom

1783690000 Details

  • Manufacturer Part Number:

    1783690000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.81

  • Additional Feature:

    94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    85 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    CSA; IEC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    25 mm2

  • Wire Gauge:

    4 AWG

1783690000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1783690000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1783690000 is designed to be compatible with various industrial automation protocols, including PROFINET and EtherNet/IP, allowing for seamless integration into industrial networks.
  • The maximum cable length supported by the 1783690000 depends on the specific application and cable type, but generally, it can support cable lengths up to 100 meters.
  • The 1783690000 has built-in surge protection, which provides a high level of protection against electrical surges and spikes, eliminating the need for external protection in most cases.
  • The 1783690000 is designed to meet the requirements for use in hazardous locations, including explosion-proof areas, but it's essential to consult the manufacturer's documentation and relevant industry standards to ensure compliance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1783690000 Overview

Use the download button to access the 1783690000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17836, or try a keyword search, such as Terminals and Terminal Blocks
