Part Image

1786462 - Phoenix Contact

Description: IC 2,5/ 8-G-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: IC 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 2, plug-in system: COMBICON MSTB 2,5, Pin connector pattern ali

Download 1786462 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

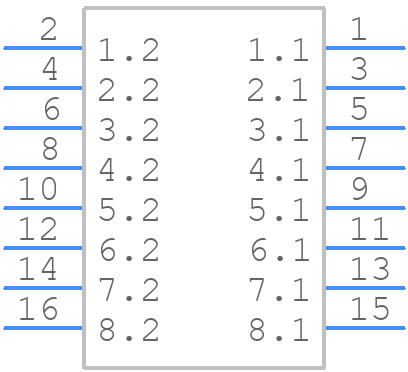

1786462 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

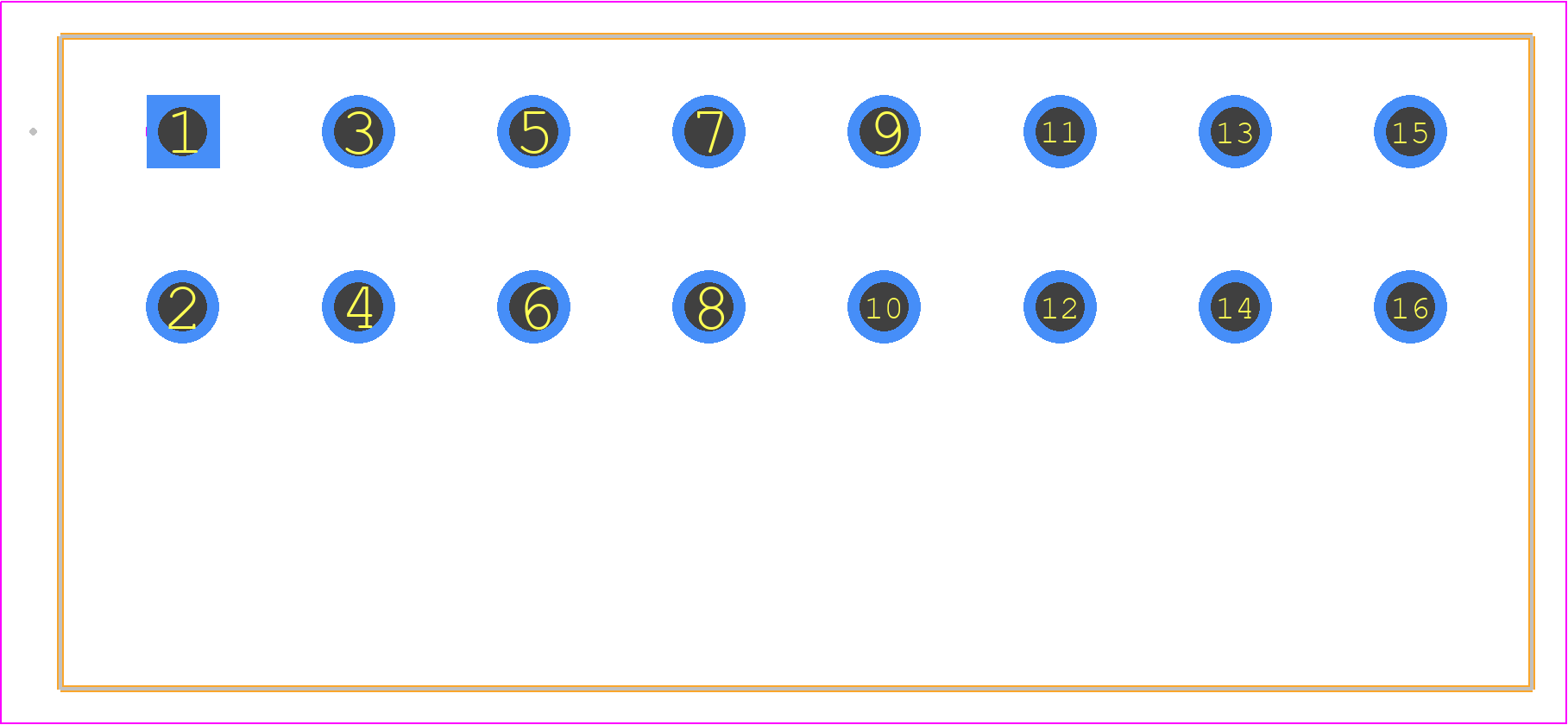

1786462 - Phoenix Contact PCB footprint - Other - Other - 1786462
click to zoom
3D Models
1786462 - Phoenix Contact - 3D model - Other - 1786462
click to zoom

1786462 Details

  • Manufacturer Part Number:

    1786462

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CCA; CSA; CUL; EAC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1786462 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1786462 connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for high-vibration applications.
  • Yes, the 1786462 connector is designed for automated assembly and can be easily integrated into pick-and-place machines.
  • The operating temperature range for the 1786462 connector is -40°C to 125°C, making it suitable for a wide range of industrial applications.
  • Yes, the 1786462 connector is designed to meet IP67 and IP69K standards, making it suitable for outdoor and harsh environmental applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1786462 Overview

Use the download button to access the 1786462 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17864, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
