1787030 - Phoenix Contact

Description: DMC 1,5/ 4-G1F-3,5-LR P20THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 2, number of positions: 4, number of connections: 8, product range: DMC 1,5/..-G1F-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1,

Download 1787030 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1787030 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

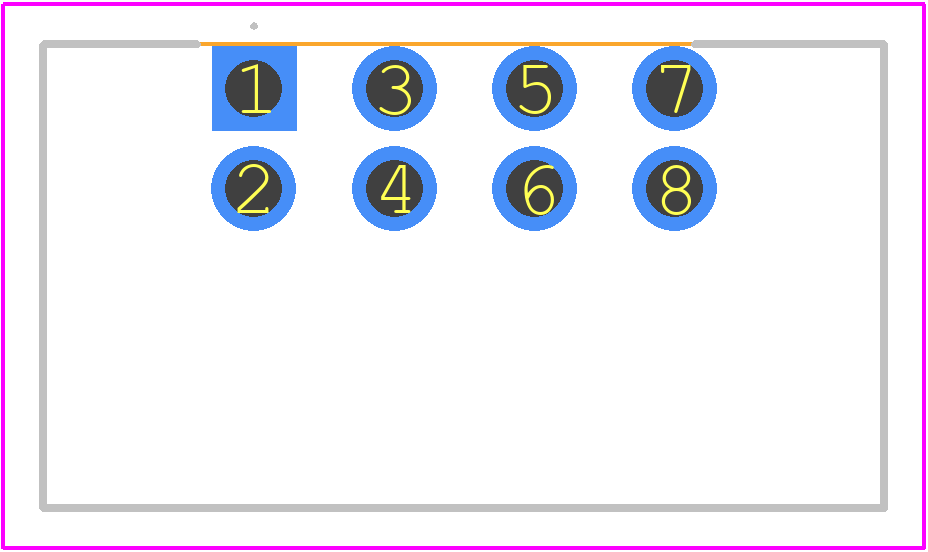

1787030 - Phoenix Contact PCB footprint - Other - Other - 1787030-1
click to zoom
3D Models
1787030 - Phoenix Contact - 3D model - Other - 1787030-1
click to zoom

1787030 Details

  • Manufacturer Part Number:

    1787030

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD AND PANEL

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    4

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1787030 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact manual.
  • Yes, the 1787030 connector is designed to withstand vibrations and is suitable for use in high-vibration applications, such as in industrial machinery or transportation systems.
  • Yes, the 1787030 connector is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals.
  • The operating temperature range for the 1787030 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the 1787030 connector is designed to be resistant to moisture and can be used in harsh environments, including outdoors or in humid conditions, but it's recommended to follow the manufacturer's guidelines for environmental protection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1787030 Overview

Use the download button to access the 1787030 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17870, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
