1789074 - Phoenix Contact

Description: FFKDSA1/V-2,54-16 - Printed circuit board terminal, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm<sup>2</sup>, number of potentials: 16, number of rows: 1, number of positions per row: 16, product range: FFKDS(A) 0,5/..-V, pitch: 2.54 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging

Download 1789074 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

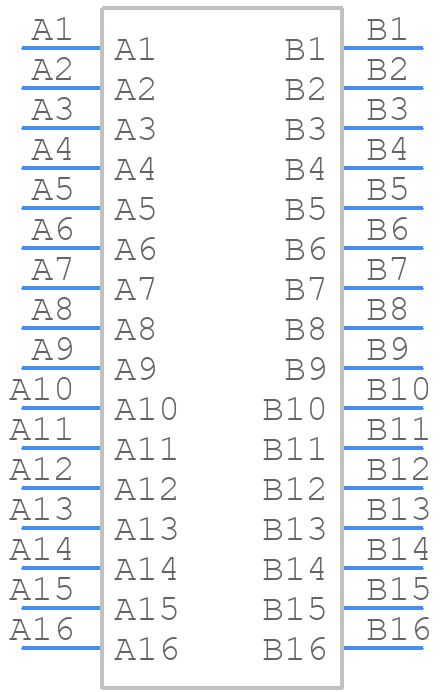

1789074 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

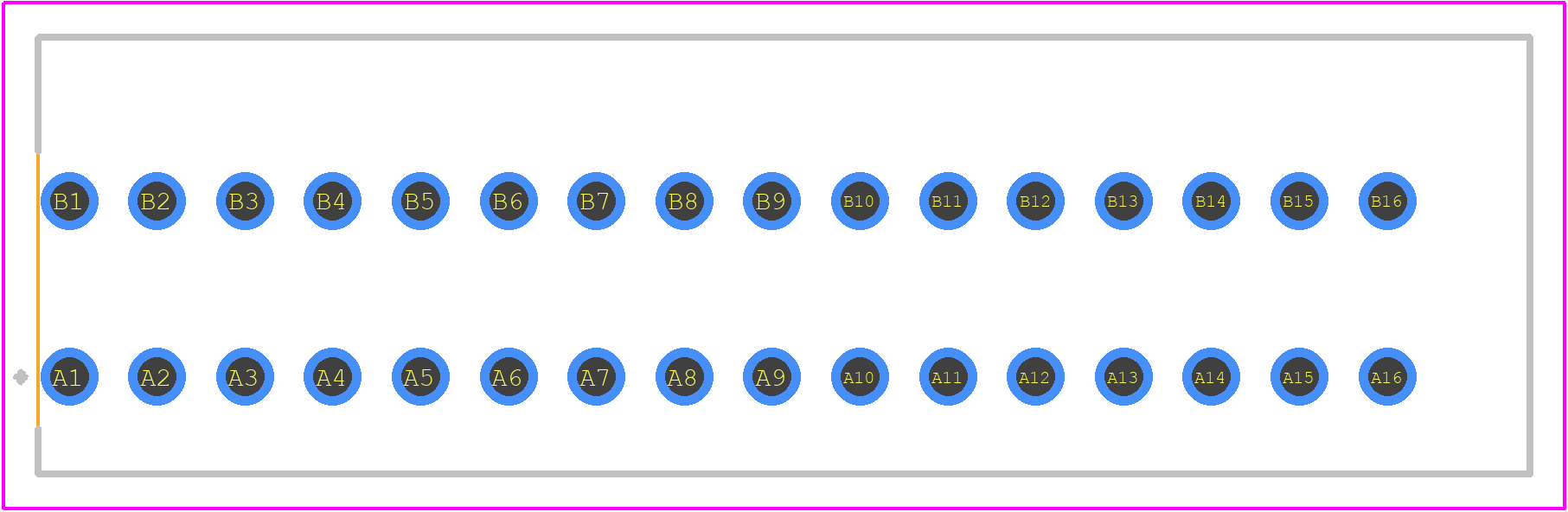

1789074 - Phoenix Contact PCB footprint - Other - Other - 1789074-1
click to zoom
3D Models
1789074 - Phoenix Contact - 3D model - Other - 1789074-1
click to zoom

1789074 Details

  • Manufacturer Part Number:

    1789074

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    PUSH-IN/SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    16

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA;CUL;EAC;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1789074 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1789074 is -40°C to 125°C, according to Phoenix Contact's documentation.
  • Yes, the 1789074 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The recommended torque for the screw terminals on the 1789074 is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1789074 is designed to withstand high-vibration environments, with a vibration resistance of up to 10 g (according to IEC 60068-2-6).
  • The 1789074 has a protection rating of IP20, which means it is not suitable for outdoor use or exposure to moisture. It is intended for indoor use only.
