1789245 - Phoenix Contact

Description: MC 1,5/ 6-GF-3,5 P26 THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MC 1,5/..-GF-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin

Download 1789245 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1789245 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

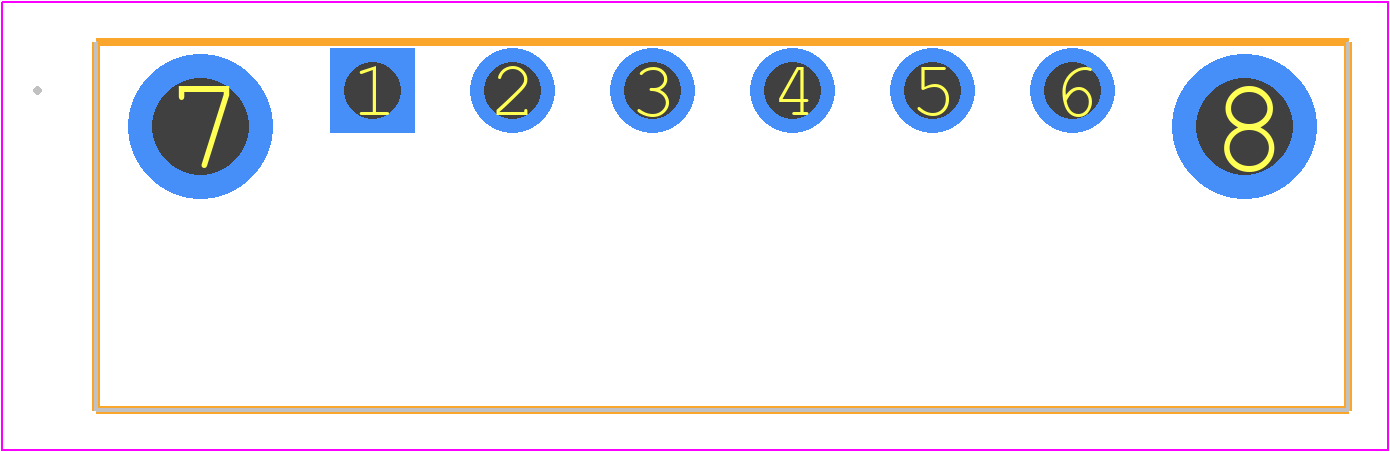

1789245 - Phoenix Contact PCB footprint - Other - Other - 1789245
click to zoom
3D Models
1789245 - Phoenix Contact - 3D model - Other - 1789245
click to zoom

1789245 Details

  • Manufacturer Part Number:

    1789245

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1789245 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general technical guidelines.
  • Yes, the 1789245 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The 1789245 has a protection rating of IP67, which means it is protected against dust and temporary immersion in water. However, it's recommended to use additional protection measures, such as a sealant or conformal coating, for extended outdoor use.
  • While the datasheet recommends AWG 24-18 wire sizes, the connector can accommodate other wire sizes within the specified range. However, it's essential to ensure the wire size and insulation meet the connector's specifications to maintain reliable connections.
  • Yes, the 1789245 is part of the Phoenix Contact's COMBICON product family, which offers a wide range of compatible connectors, headers, and accessories. It's designed to work seamlessly with other products in the COMBICON series.
