Part Image

1789423 - Phoenix Contact

Description: MC 1,5/ 4-GF-3,5 P20 THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: MC 1,5/..-GF-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin c

Download 1789423 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1789423 - Phoenix Contact - PCB symbol
click to zoom

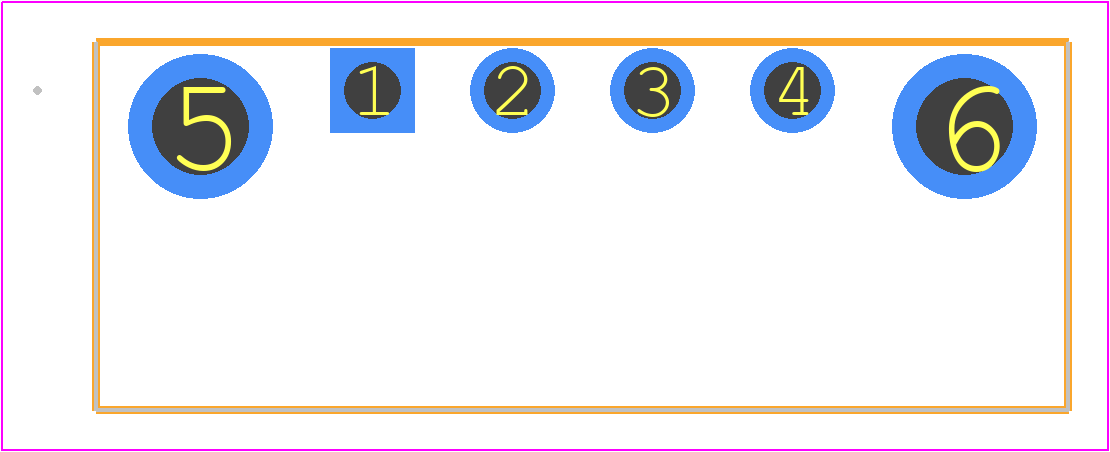

PCB Footprints
1789423 - Phoenix Contact PCB footprint - Other - Other - 1789423
click to zoom
3D Models
1789423 - Phoenix Contact - 3D model - Other - 1789423
click to zoom

1789423 Details

  • Manufacturer Part Number:

    1789423

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1789423 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1789423 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific requirements of your application.
  • Yes, the 1789423 is UL recognized and meets the requirements of UL 1977 and UL 2238.
  • The maximum operating temperature of the 1789423 is 125°C (257°F), with a maximum storage temperature of 150°C (302°F).
  • The 1789423 has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not protected against water or moisture. If you need a connector for a humid or wet environment, consider using a connector with a higher IP rating, such as IP67 or IP69K.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1789423 Overview

Use the download button to access the 1789423 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17894, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
