1791282 - Phoenix Contact

Description: FFKDSA1/H1-5,08- 4 - Printed circuit board terminal, nominal current: 15 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: FFKDS(A)/H1, pitch: 5.08 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging: packe

Download 1791282 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1791282 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

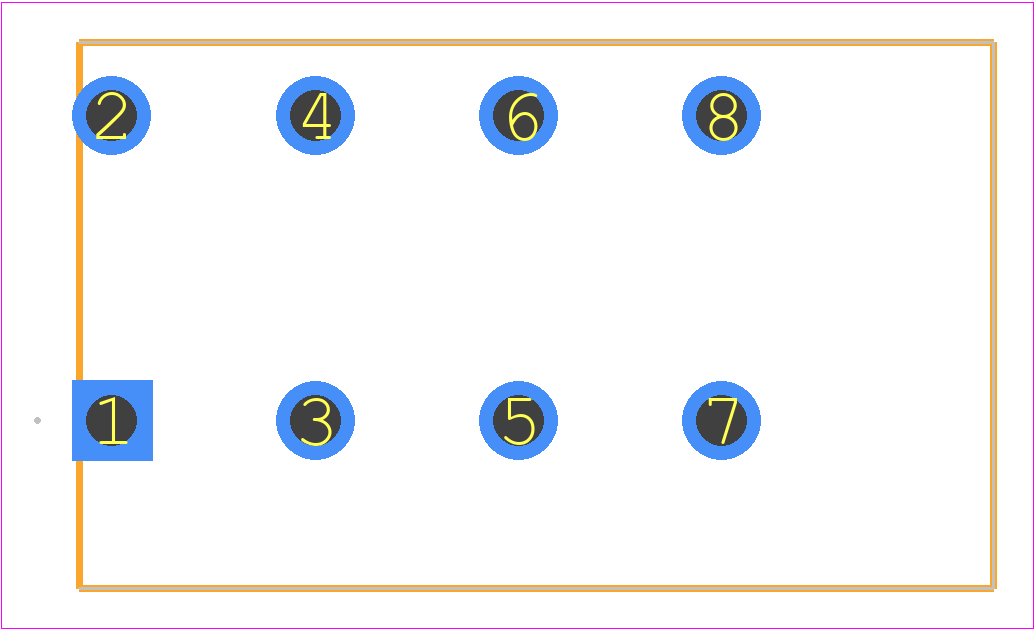

1791282 - Phoenix Contact PCB footprint - Other - Other - 1791282
click to zoom
3D Models
1791282 - Phoenix Contact - 3D model - Other - 1791282
click to zoom

1791282 Details

  • Manufacturer Part Number:

    1791282

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.5

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    15 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CUL; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1791282 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1791282 is -40°C to 125°C.
  • Yes, the 1791282 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1791282 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The maximum wire size that can be connected to the 1791282 is 2.5 mm² (AWG 14).
  • Yes, the 1791282 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
