1796351 - Phoenix Contact

Description: MSTBV 2,5/ 5-GF-5,08 EX - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, contact surface: Sn, contact connection type: Pin, number of rows: 1, number of positions: 5, product range: MSTBV 2,5/..-GF-EX, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5 EX, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting method

Download 1796351 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1796351 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

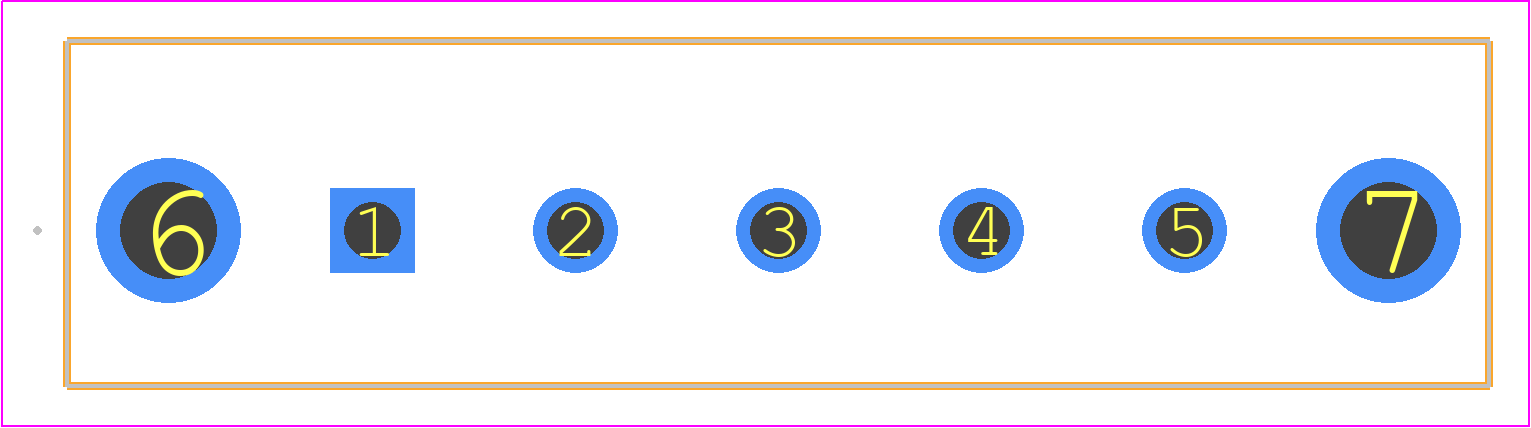

1796351 - Phoenix Contact PCB footprint - Other - Other - 1796351
click to zoom
3D Models
1796351 - Phoenix Contact - 3D model - Other - 1796351
click to zoom

1796351 Details

  • Manufacturer Part Number:

    1796351

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    2

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1796351 Overview

Use the download button to access the 1796351 schematic symbol, PCB footprint, and 3D model.
