180-M15-113R021 footprint, schematic symbol and 3D model by NorComp

Symbol

click to zoom

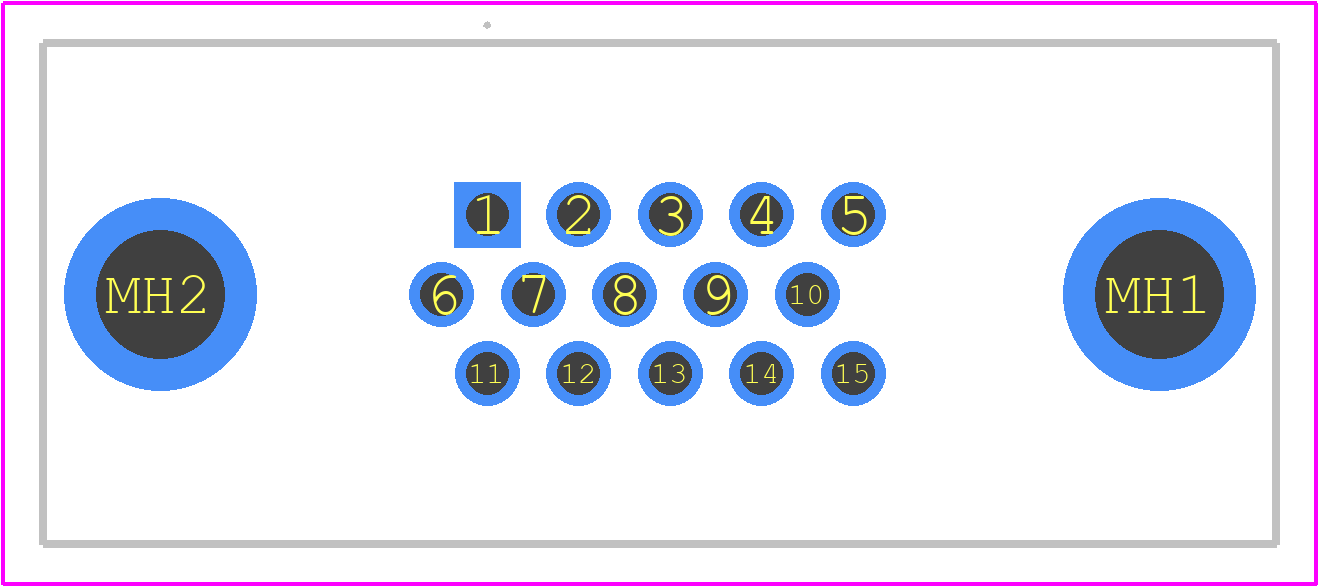

PCB Footprints

180-M15-113R021 - NorComp PCB footprint - Other - Other - 180-M15-113R021-1

click to zoom

3D Models

180-M15-113R021 - NorComp - 3D model - Other - 180-M15-113R021-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 180-M15-113R021
Part Number 180-M15-113R021
Manufacturer NorComp
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - 180-M15-113R021-1
Released Date Mar 9, 2022
Last Modified Date Dec 4, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

180-M15-113R021 Details

Manufacturer Part Number:
180-M15-113R021
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
YTEOL:
8
Board Mounting Option:
HOLE 0.126
Body Breadth:
0.492 inch
Body Depth:
0.232 inch
Body Length:
1.213 inch
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Termination:
GOLD
Contact Gender:
MALE
Contact Pattern:
STAGGERED
Contact Resistance:
10 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
1000VAC V
Empty Shell:
NO
Filter Feature:
NO
Insulation Resistance:
5000000000 Ω
Insulator Color:
BLACK
Insulator Material:
POLYAMIDE9T
JESD-609 Code:
e4
Mating Contact Pitch:
0.09 inch
Mating Contact Row Spacing:
0.078 inch
Mixed Contacts:
NO
Mounting Option 1:
#4-40
Mounting Option 2:
CLINCH NUT
Mounting Style:
STRAIGHT
Mounting Type:
BOARD AND PANEL
Number Of Connectors:
ONE
Number Of PCB Rows:
3
Number of Rows Loaded:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
1.981 mm
Plating Thickness:
FLASH inch
Rated Current (Signal):
3 A
Reference Standard:
UL
Shell Finish:
NICKEL
Shell Material:
STEEL
Shell Size:
1/E
Terminal Length:
0.256 inch
Terminal Pitch:
2.29 mm
Termination Type:
SOLDER
Total Number of Contacts:
15
UL Flammability Code:
94V-0
