1800974 - Phoenix Contact

Description: MSTBV 2,5/ 4-GF-5,08 BK - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: MSTBV 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pat

Download 1800974 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1800974 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

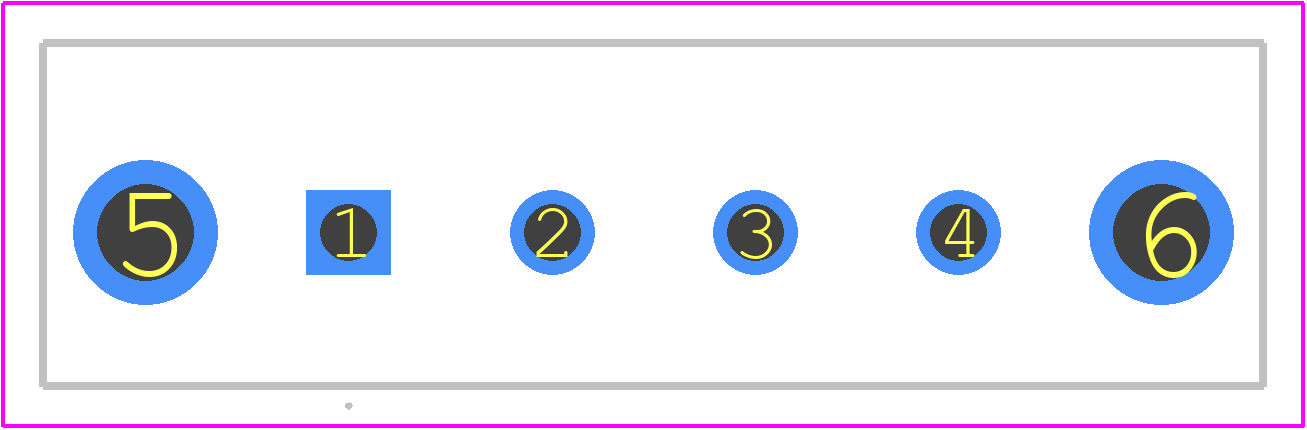

1800974 - Phoenix Contact PCB footprint - Other - Other - 1800974-1
click to zoom

1800974 Details

  • Manufacturer Part Number:

    1800974

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1800974 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the Phoenix Contact application notes for more information.
  • Yes, the 1800974 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to maintain the connector's integrity.
  • The 1800974 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and protection of the connector and cables to maintain the IP67 rating.
  • Yes, the 1800974 connector is designed to accommodate cables with a diameter range of 4 mm to 10 mm. However, it's essential to consult the Phoenix Contact cable sizing charts to ensure proper cable selection and termination.
  • The 1800974 connector has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of industrial applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1800974 Overview

Use the download button to access the 1800974 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 18009, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
