Description: GMSTB 2,5/ 8-GF-7,62 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: GMSTB 2,5/..-GF, pitch: 7.62 mm, mounting: Wave soldering, conductor/PCB connection direction: 0 °, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in syste

Download 1806287 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1806287 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

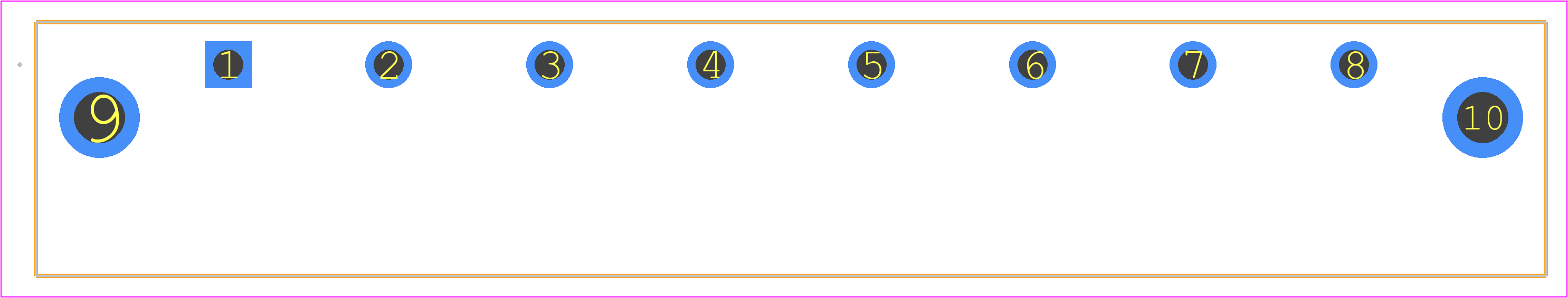

1806287 - Phoenix Contact PCB footprint - Other - Other - 1806287
click to zoom
3D Models
1806287 - Phoenix Contact - 3D model - Other - 1806287
click to zoom

1806287 Details

  • Manufacturer Part Number:

    1806287

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.74

  • Additional Feature:

    PA, UL 94V-0, SAFETY APPROVAL VDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    12 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    CCA; CB; CSA; CUL; GOST; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1806287 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1806287 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1806287 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, allowing for easy integration into existing systems.
  • The maximum current rating of the 1806287 is 32 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1806287 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration, making it suitable for use in industrial and automation applications.
  • The 1806287 has a screw termination type, which provides a secure and reliable connection.
