The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the M26 thread size.
Yes, the connector is designed to withstand high-vibration environments, making it suitable for aerospace, industrial, and transportation applications.
The operating temperature range for the 181-M26-213R141 is -55°C to 150°C (-65°F to 302°F).
Yes, the connector is designed to be environmentally sealed, with a rating of IP67, making it suitable for use in harsh environments.
The mating cycle life of the connector is rated for a minimum of 500 mating cycles.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
181-M26-213R141 Overview

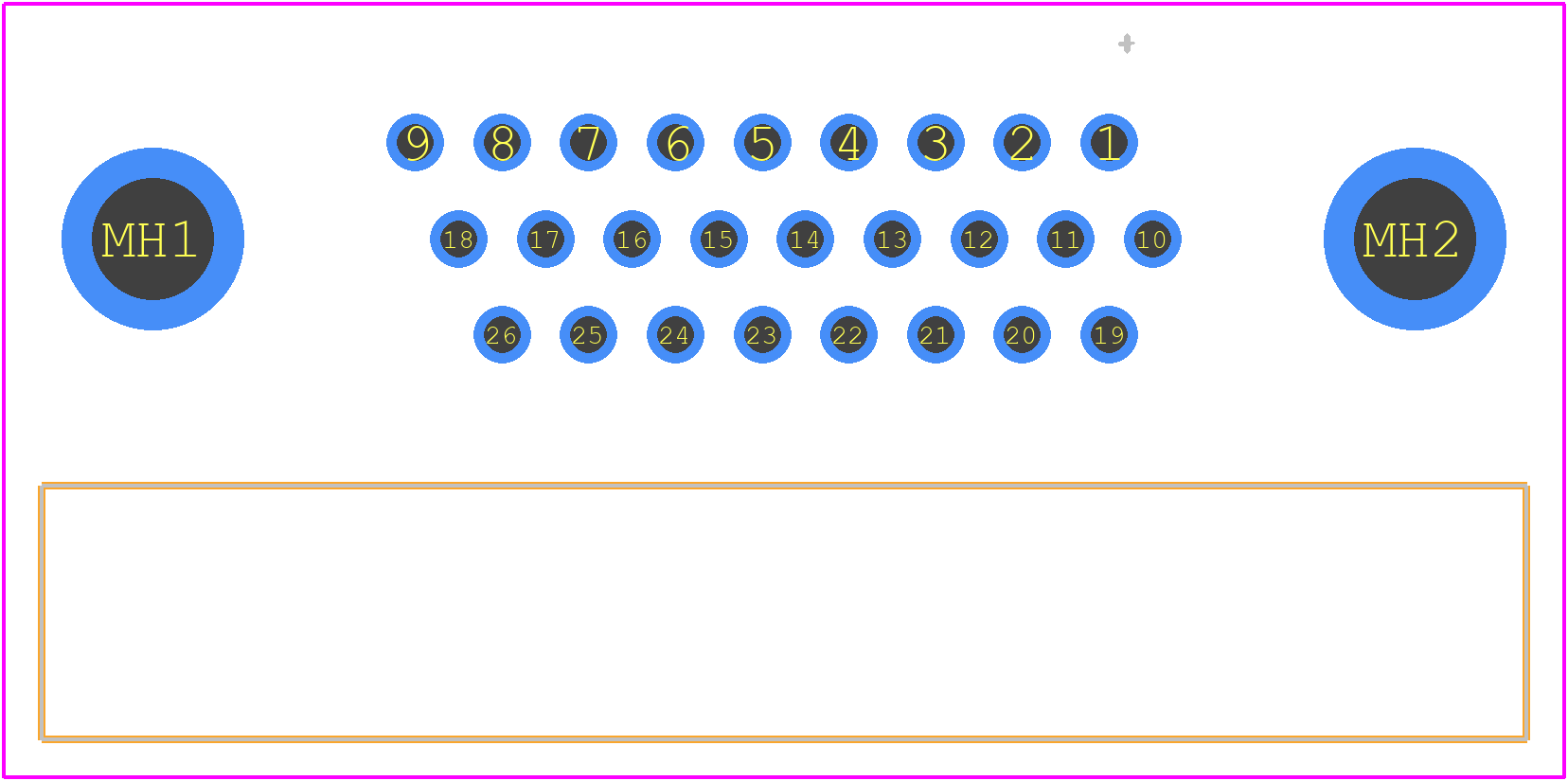

Use the download button to access the 181-M26-213R141 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 181-M,
or try a keyword search, such as D Type Connectors
