181-M62-213R141 - NorComp

Description: D-Sub High Density Connectors 62P HD Fem Vert Dip Machin Nickl W/Bdlck

Download 181-M62-213R141 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
181-M62-213R141 - NorComp - PCB symbol
click to zoom
PCB Footprints

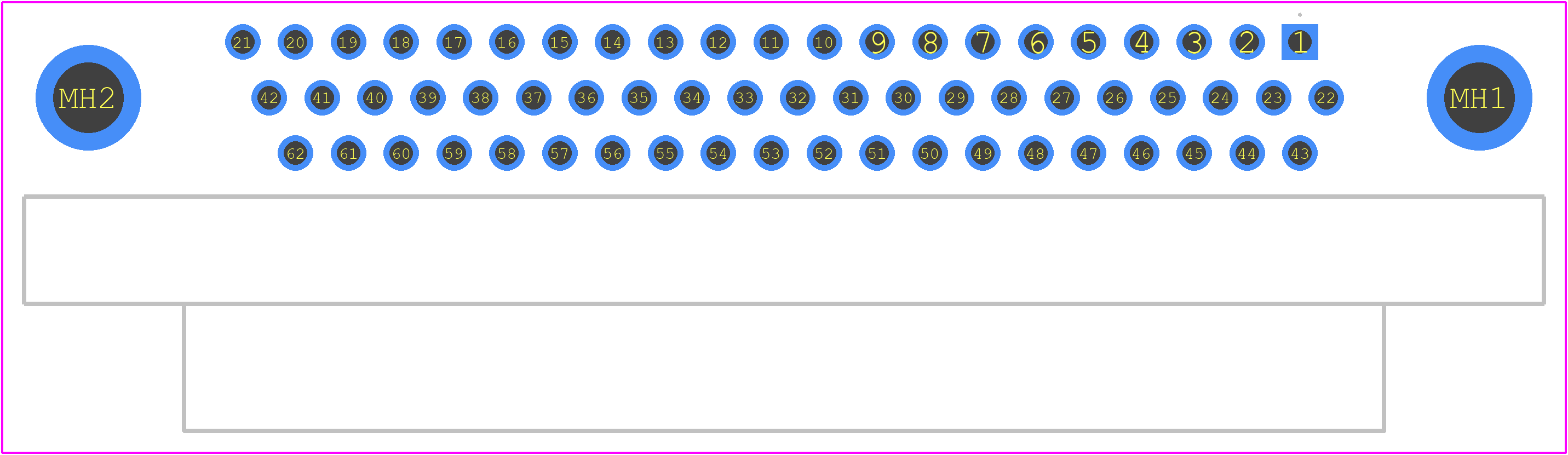

181-M62-213R141 - NorComp PCB footprint - Other - Other - 181-M62-213R141-2
click to zoom
3D Models
181-M62-213R141 - NorComp - 3D model - Other - 181-M62-213R141-2
click to zoom

181-M62-213R141 Details

  • Manufacturer Part Number:

    181-M62-213R141

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE6T

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    62

  • UL Flammability Code:

    94V-0

181-M62-213R141 Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads on the 181-M62-213R141 connector.
  • Yes, the 181-M62-213R141 connector is designed to withstand high-vibration environments and is suitable for applications where shock and vibration are a concern.
  • The 181-M62-213R141 connector is designed to operate in temperatures ranging from -55°C to 125°C and can withstand exposure to certain chemicals, but it's recommended to consult the datasheet and manufacturer's guidelines for specific environmental conditions.
  • The 181-M62-213R141 connector has a mating cycle life of 500 cycles minimum, but this can vary depending on the application and environmental conditions.
  • Yes, the 181-M62-213R141 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability.
